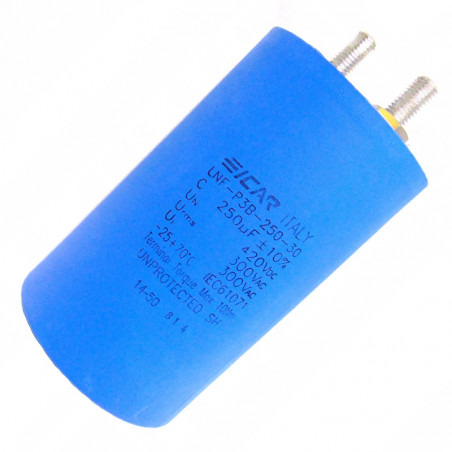

Photos are for informational purposes only. View product specification
Electrical data | ||
Dielectric: | polypropylene | ![]() |
Temperature range | -25°C ÷ 70°C | |
Capacity range | 40µF ÷ 500µF | |
Tolerance | ± 5 | |
Life time | 100 000h | |
Standards | IEC 1071-1; EN 61071; IEC-384-1;IEC 68-2 | |
Voltage test | terminal/terminal = 640VAC⁄10s terminal/casing= 2500VAC/60s |
Series: 30 URMS=300V UN=420V
Type | UN [VAC] | Capacity [µF] | Ls [nH] | dv/dt V/us | Rs [mΩ] | Imax A | D [mm] | d [mm] | L [mm] |
---|---|---|---|---|---|---|---|---|---|
LNF-P3A-50-30 |
420 | 50 | 80 | 20 | 6.06 | 30 | 60 | M6 | 140 |
LNF-P3Y-100-30 |
420 | 100 | 80 | 25 | 5.27 | 28 | 60 | M6 | 140 |
LNF-P3Y-130-30 |
420 | 130 | 80 | 20 | 4.74 | 30 | 60 | M6 | 140 |
LNF-P3Y-150-30 |
420 | 150 | 134 | 20 | 3.61 | 30 | 75 | M6 | 140 |
LNF-P3B-200-30 |
420 | 200 | 134 | 20 | 3.06 | 35 | 75 | M10 | 140 |
LNF-P3B-250-30 |
420 | 250 | 134 | 30 | 2.34 | 40 | 85 | M10 | 140 |
LNF-P3B-300-30 |
420 | 300 | 134 | 30 | 2.11 | 40 | 85 | M10 | 140 |
Are you interested in this product? Do you need additional information or individual pricing?
Electrical data | ||
Dielectric: | polypropylene | ![]() |
Temperature range | -25°C ÷ 70°C | |
Capacity range | 40µF ÷ 500µF | |
Tolerance | ± 5 | |
Life time | 100 000h | |
Standards | IEC 1071-1; EN 61071; IEC-384-1;IEC 68-2 | |
Voltage test | terminal/terminal = 640VAC⁄10s terminal/casing= 2500VAC/60s |
Series: 30 URMS=300V UN=420V
Type | UN [VAC] | Capacity [µF] | Ls [nH] | dv/dt V/us | Rs [mΩ] | Imax A | D [mm] | d [mm] | L [mm] |
---|---|---|---|---|---|---|---|---|---|
LNF-P3A-50-30 |
420 | 50 | 80 | 20 | 6.06 | 30 | 60 | M6 | 140 |
LNF-P3Y-100-30 |
420 | 100 | 80 | 25 | 5.27 | 28 | 60 | M6 | 140 |
LNF-P3Y-130-30 |
420 | 130 | 80 | 20 | 4.74 | 30 | 60 | M6 | 140 |
LNF-P3Y-150-30 |
420 | 150 | 134 | 20 | 3.61 | 30 | 75 | M6 | 140 |
LNF-P3B-200-30 |
420 | 200 | 134 | 20 | 3.06 | 35 | 75 | M10 | 140 |
LNF-P3B-250-30 |
420 | 250 | 134 | 30 | 2.34 | 40 | 85 | M10 | 140 |
LNF-P3B-300-30 |
420 | 300 | 134 | 30 | 2.11 | 40 | 85 | M10 | 140 |
