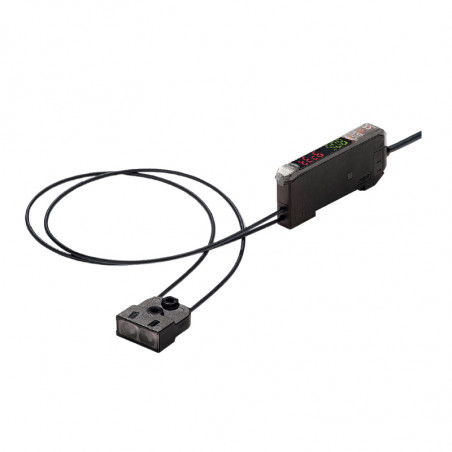

E3X-DACLR Series Color Sensor

The E3X-DACLR is a reliable and easy-to-use color verification system. It can identify up to four colors. A separate amplifier can be installed in an easily accessible location, while the small head fits where space is limited.
  • Easy-to-use 1- to 4-color verification system.
  • Remote learning capability.
  • Small head easily mounts in tight spaces.
  • White LED and multi-sided detection modes ensure reliable operation even in challenging applications.

Ordering Information

Type Output Tolerance Adjustment Connection Method PNP Designation *1
Single Color Detection Color Detection - Digital Output - Learning (good sample) with automatic tolerance 4-pin flexible M8 connector (with 30 cm PVC cable)*2 E3X-DACLRX1P-M3J 0.3M
1 to 4 color detection Color detection - digital output (with bank switching) - 2-point learning (good and bad sample) 2m PVC cable E3X-DACLRX4P 2M

*1 NPN models are available. Please contact your DACPOL representative.
*2 Models with a 2m PVC cable or M12 flexible connector are also available. Please contact your DACPOL representative.

Specifications (amplifier and detector head)

Model Single Color Detection 1 to 4 Color Detection
Light Source (Wavelength) White LED (420-700 nm)
Number of Registered Marks 1 1 to 4 (2 banks of 2 colors each, can be switched from an external source)
Supply voltage 12-24 VDC ±10%, ripple (p-p): max. 10%
Protection circuits Protection against reverse polarity, against output short circuit, against mutual interference, against output reversal
Ambient temperature Operation from -25°C to 55°C (amplifier) ​​from -40°C to 70°C (detector head)
Storage -30°C to 70°C (amplifier), (no icing or condensation) -40°C to 70°C (detector head)
Response time Super high speed mode Standard mode Operation/reset: 60 ps
Operation/reset: 1 ms		 Operation/reset: 120 ps
Operation/reset: 2 ms
Functions Operation Mode Switch ON for compatibility (ON for color same as registered color) or ON for discrepancy (ON for color different from registered color)
Timer Function Timer type: OFF-Delay relay, ON-Delay relay, or timed ON. Timer setting: 1ms-5s (variable).
Remote control - Single-point teaching, teaching with or without operating element, reset and OFF for light emission.
Protection class IEC 60529 IP50 (with protective cover in place)
