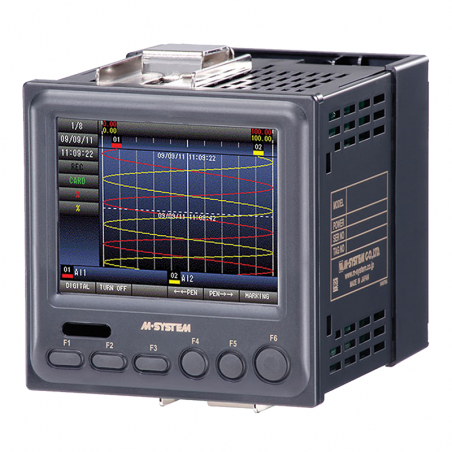

Compact graphic recorder 71VR1

Compact graphic recorder 71VR1


Features

  • panel assembly
  • dimensions 96x96 mm (1/4 DIN)
  • LCD display 3,5”
  • max 8 digital inputs and 8 analog inputs
  • max 8 alarm outputs
  • possibility to connect inputs directly to the device and remotely via Modbus RTU
  • data transfer to PC through IR port


Technical data

Universal input ranges - input DC (-20..+20 mA, -1..+1 VDC, -5..+5 VDC, -10..+10 VDC)
- thermocouples: K, E, J, T, B, R, S, C, N, U, L, P
- resistive sensors: Ptl 00, JPtl 00, Pt50, Nil 00, Cul 0, Cu50
Logic inputs 2 currentless contacts
Logic outputs 2 relay outputs
Power supply 100..240 VAC (10 VA @ 240 VAC); 24 VDC; 85..150 VDC (6W)
Operating temperature -5..+55 °C
Dimensions 96 x 96 x 100 mm
Weight 550 g
Ingress Protection IP65
LCD display
 3,5”, 256 colors, 320x240 pixels, refresh rate 500 ms
Data recording memory card


Types

71VR1-E001 2 digital inputs, 2 digital outputs, Modbus
71VR1-E101 2 digital inputs, 2 digital outputs, 2 DC inputs, Modbus
71VR1-E501 2 digital inputs, 2 digital outputs, 2 DC inputs, 3 universal inputs, Modbus
