Manufacturer: ESA Automation

EX computers for the XS7 series built-in

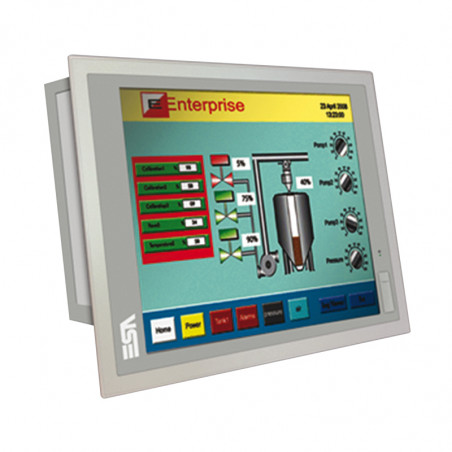

EX Series X57 Built-in Computers


DACPOL can build any EX-approved computer into a CASE. DACPOL guarantees all the documents necessary for using such a device in the zone.
DACPOL's strong partner in this area is ESA. This company has a large number of computers approved for use in Zone 2/22. The new XS7 series of industrial panel computers is available with processors such as Intel iCore i3, i5 and i7, Intel Atom Dual Core, and Intel Celeron Quad.

Technical Specifications
  • Screen sizes from 7” to 19”
  • Flexible configuration: HDD, SSD, mSATA/CFast, PCI/PCIe slot, CPU, and RAM
  • Elegant industrial design, available with aluminum or stainless steel front bezel, XS7 INOX series
  • True-flat touchscreen
  • Removable HDD/SSD
  • RAID function

Basic model table (full offer on the website)


XS708 XS712 XS715 XS717 XS719
Screen diagonal 8.4" 12.1" SVGA-XGA 15" 17" 19"
Display Technology TFT
Number of display colors 16.7 million
Backlight type LED
Lamp life 50 K
Screen resolution (pixels) 800 x 600 800 x 600 (SVGA)
1024 x 768 (XGA)		 1024 x 768 1280 x 1024
Touch screen type Analog resistive??? (4 wires) Analog resistive??? (5 wires)
CPU (fanless) Celeron Quad Core J1900 2.0 GHz (2.42 GHz) - 10 W
Intel® Core i3-4010U 1.7 GHz / i7-4650U 1.7 GHz (3.3 GHz) - 15 W		 Intel® ATOM Dual Core 1.86 GHz N2800

Note: Computers come in various configurations.
