Manufacturer: B&B Electronics

Converters - ADAM 4520/4520I/4541/4542+ series

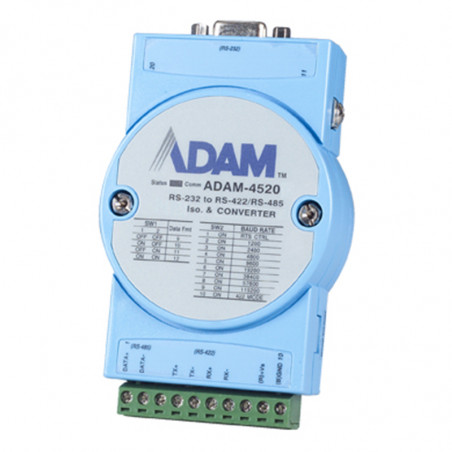

ADAM-4520 - RS-232 to RS-422/485 Converter with Optoisolation


Features
  • Data transfer rate from 1200 bps to 115.2 Kbps
  • RS-232 signals: Rx, Tx, RTS (optional), GND
  • RS-485 signals: Data+, DATA-
  • RS-422 signals: Tx+, TX-, Rx+, Rx-
  • Data flow direction control in RS-485 mode (switchable):
  • - automatic
    - with RTS signal
  • RS-232 interface connector: DB9 (female)
  • RS-485/RS-422 interface and power supply connector: screw terminal
  • Operating temperature range: -10 ÷ 70°C
  • Optoisolation: 3kV
  • Power supply: 10-30VDC
  • Power consumption: 1.2 W
ADAM-4520 - RS-232 to RS-422/485 with optoisolation

ADAM-4520


NOTE: When connecting the ADAM-4520 (also 4522) converter to a standard RS-232 port (e.g., on a computer), use a straight-through cable - i.e., an RS-232 extension cable (without crossover, 1:1).
ADAM-4520I - RS-232 to RS-422/485 converter with optoisolation

Characteristics
  • Data transmission speed from 1200 bps to 115.2 Kbps
  • RS-232 signals: Rx, Tx, RTS (optional), GND
  • RS-485 signals: Data+, DATA-
  • RS-422 signals: Tx+, TX-, Rx+, Rx-
  • Data flow direction control in RS-485 mode (switchable):
  • - automatic
    - with RTS signal
  • RS-232 interface connector: DB9 (female)
  • RS-485/RS-422 interface and power connector: screw terminal
  • Operating temperature range: -40 ÷ 85°C
  • Optoisolation: 3kV
  • Power supply: 10-30VDC
  • Power consumption: 1.2 W
ADAM-4520

ADAM-4520I


NOTE: When connecting the ADAM-4520 (also 4522) converter to a standard RS-232 port (e.g., on a computer), use a straight cable - i.e., an RS-232 extension cable (without Crossover, 1:1).
ADAM-4510 - RS-422/485 Repeater

Features
  • Data transfer rate: 1200 bps to 115.2 Kbps
  • RS-422/485 interface and power connector: screw terminal block
  • RS-485 signals: Data+, Data-
  • RS-422 signals: Rx+, Rx-, Tx+, Tx-
  • Power supply: 10-30VDC
  • Power consumption: 1.4 W
ADAM-4520I

ADAM-4510

ADAM-4510S - RS-422/485 Repeater


Characteristics
  • data transfer rate: from 1200 bps to 115.2 Kbps
  • RS-422/485 interface and power connector: screw terminal block
  • RS-485 signals: Data+, Data-
  • RS-422 signals: Rx+, Rx-, Tx+, Tx-
  • Optoisolation: 3000V
  • Power supply: 10-30VDC
  • Power consumption: 1.4 W
ADAM-4510

ADAM-4510S

ADAM-4561 - USB to RS-232/RS-422/RS-485 Converter with 3kV Optoisolation


Features
  • 1 serial port configurable as RS-232/422/485
  • Transmission speed up to 115.2kbps
  • Optoisolation: 3000V
  • Automatic direction detection RS-485 transmission
  • Powered from the USB port - no additional power supply required
  • Plug [&] Play installation
  • Does not use any additional interrupts or I/O space from the computer
  • Drivers available for Windows 98/2000/XP/Vista
  • Hot-pluggable - no need to turn off the computer
  • Power consumption: 1.5W
ADAM-4510S

ADAM-4561


NOTE: In the case of RS-232, only the Rx, Tx, and ground (Gnd) data lines are present.

ADAM-4562 - USB to RS-232 Converter with 2.5kV Optoisolation


Features
  • Full RS-232 (9-wire)
  • DB-9 male connector
  • Transmission speed: 75bps÷115.2kbps
  • Optoisolation 2.5kV
  • Power supplied from USB port
  • Plug [&] Play installation
  • Hot-swap connection
  • Available drivers for Windows 98/2000/XP/Vista
  • Power consumption: 1.1W
ADAM-4562

ADAM-4562

ADAM-4541 - RS-232/422/485 to Multimode Fiber Converter


Features
  • Data transfer rate: up to 115.2 Kb/s
  • Serial interface connectors: screw terminal block
  • Short adapter cable for RS-232 to DB-9 connector included
  • Fiber connectors: ST
  • Range: 2.5 km
  • Fiber: Multimode
  • Wavelength: 820 nm
  • Power supply: 10-30VDC
  • Power consumption: 1.5W
ADAM-4562

ADAM-4541

ADAM-4542+ - Converter from RS-232/422/485 to single-mode fiber optic


Features
  • Data transfer rate: up to 115.2 Kb/s
  • Serial interface connectors: screw terminal block
  • Short adapter cable for RS-232 to DB-9 connector included
  • Fiber optic connectors: SC
  • Range: 15 km
  • Fiber optic: single-mode
  • Wavelength: 1310 nm
  • Power supply: 10-30VDC
  • Power consumption: 1.5W
ADAM-4542+

ADAM-4542+
