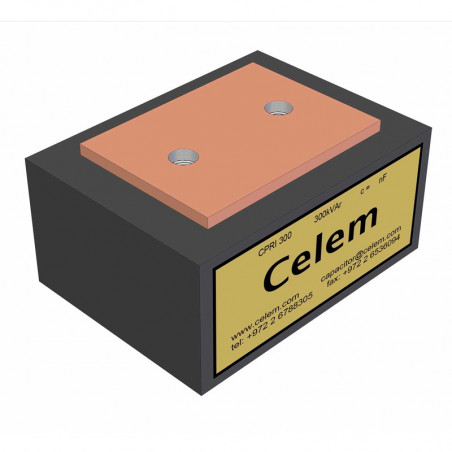

CPRI 300
  • CPRI 300

Photos are for informational purposes only. View product specification

Manufacturer: Celem

CPRI 300

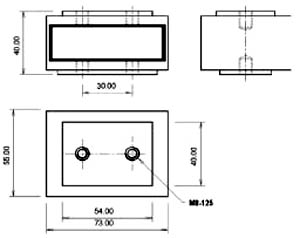

Dimensions

rysunek

Electrical data

Type CP 30/75
Dimensions (LxWxH) [mm] 75x55x40
Weight [kg] do 0,8
Capacity(±10%) [µF] 0,1 0,4 0,67 0,8 1 1,25
Sinusoidal Voltage [VRMS] 500
Impulse voltage [V] 710
Max current. [A] 650
Max power [kVAr] 300

Characteristics

rysunek
