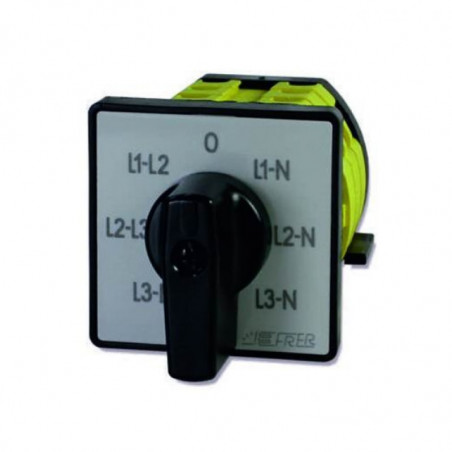

FAZ L48E selection switches ... - L52E ...

Technical Data

Thermal Current 12A
Rated Voltage 600V
Insulation Voltage 660V
Impulse Voltage 4 kV
Operating Temperature -10.. +70 °C
Storage Temperature -30…+70°C
Screw Terminals M3 2x2.5 mm2
Protection Degree IP 42 (L48E...) IP 20 (L52E...)
Standards Complied CEI EN-DIN
VDE-IEC
Test Voltage 2 kV 50 Hz x 60s



Type 48x48 DIN RAIL
Voltage Phase-Phase
4 positions		 L48EV3 L52EV3
Phase-Phase, Phase-Neutral
7 positions		 L48ET3 L52ET3
Current Single-pole up to 3 currents L48EA L52EA



Description

Commonly used phase selector switch in three-phase systems. Available switching options include:

  • Phase-phase or phase-neutral voltages using a single voltmeter
  • Selection of three currents using a single ammeter



Dimensions and Installation

Phase Selector Switches L48E… - L52E… dimensions



Connection Diagram

Phase Selector Switches L48E… - L52E… connection diagram

Commonly used phase selector switch in three-phase systems. Available switching options include:

  • Phase-phase or phase-neutral voltages using a single voltmeter
  • Selection of three currents using a single ammeter

Phase selector switches L48E… – L52E… are reliable devices designed for use in three-phase systems, providing flexible phase selection in industrial installations and power networks. They allow maintaining continuity of power supply to single-phase loads in case of phase failure or voltage drop below the standard.

Functions and Applications

  • Automatic or manual phase selection: phase-phase or phase-neutral using a single voltmeter.
  • Selection of three currents using a single ammeter, allowing efficient current measurement and system monitoring.
  • Maintaining power continuity in case of phase loss, ensuring proper operating parameters for loads.

Installation and Connection Diagram

L48E… – L52E… feature an intuitive connection diagram that facilitates quick and safe installation in three-phase systems. The switch input is connected to the phases, and the output is directed to a single-phase load or measuring devices, ensuring proper operating parameters and system protection.

Phase selector switches L48E… – L52E… (automatic phase switch) are reliable electronic devices providing flexible phase selection, maintaining power continuity, and ensuring proper operating parameters for single-phase and industrial loads. With robust construction, high protection degree, and compliance with CEI EN-DIN and VDE-IEC standards, they are an ideal solution for power networks and industrial automation systems.
