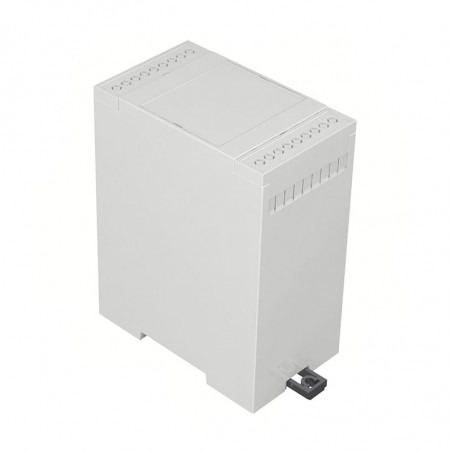

DIN rail housing | CDIB series

DIN RAIL ENCLOSURE

Electronics enclosures for mounting on DIN rails, low and high profile. Designed for mounting on 35mm DIN rails. DIN rails can also be used to mount the front of the enclosure. Multiple snap-in plate positions are available.
Product Details:

left;">Black RAL 9004, White RAL 9010, natural or powder coating (optional)
- Two posts for mounting PCBs
- Covers are snap-on
- Snap-on terminal covers
- OPEN TOP and SOLID TOP versions available
- Low and high profile versions available
- The base of the enclosure thoroughly isolates from the DIN rail
- Customizable cutouts, holes and ventilation openings are possible
- Terminal cover surfaces can be customized.
- Made of UL94-V0 polycarbonate.		 Material Cast cover and bottom for ENAC 44200 IP54.
Standard colors. Standard colors.
Standard set Lid, bottom, and 4x3M
Accessories Wall mount kit, IP65 seal
Options Description DIN Enclosures

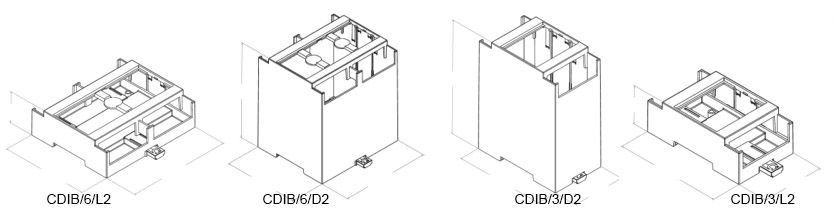

CDIB/3/L2 CDIB, Size 3, Low Profile, Open Top, Open Side - NEW
CDIB/3ST/L2 CDIB, Size 3, Low Profile, Full Top, Open Side - NEW
CDIB/3/D2 CDIB, Size 3, Deep Profile, Open Top, Open Side - NEW
CDIB/3ST/D2 CDIB, Size 3, Deep Profile, Full Top, Open Side - NEW
CDIB/6/L2 CDIB, Size 6, Low Profile, Open Top, Open Side
CDIB/6ST/L2 CDIB, Size 6, Low Profile, Full Top, Open Side
CDIB/6/D2 CDIB, Size 6, Deep Profile, Open Top, Open Side
CDIB/6ST/D2 CDIB, Size 6, Deep Profile, Full Top, Open Side

Kit

Each kit includes one gray panel cover and a choice of solid or perforated covers.

2
ELEMENTS/SET NO. BASE COVER/PG CLAMPS/TG508P COVERS/TGS
CDIB/3/L2/ZESTAW 1 1 2 1
CDIB/3ST/L2/ZESTAW 1 1 2 1
CDIB/3/D2/ZESTAW 1 0 1
CDIB/3ST/D2/ZESTAW 1 0 2 1
CDIB/6/L2/ZESTAW 1 1 4 2
CDIB/6/D2/ZESTAW 1 1 4 2
CDIB/6ST/D2/ZESTAW 1 0 4 2
CDIB/6ST/L2/ZESTAW 1 0 4 2
