Diode / Thyristor
  • Diode / Thyristor

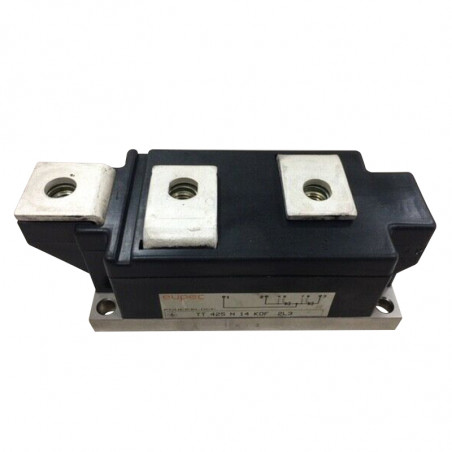

Photos are for informational purposes only. View product specification

Manufacturer: Infineon

Diode / Thyristor

DIODE/THYRISTOR

Table. Electrical Data


TypeITAVM/TC
[A/°C]
VDRM
[V]
I TSM [A]I2t
[A2 xl03]
tq
[ms]
dv/dtcr
[V/ms]
RthJC
[°C/W]
RthCK
[°C/W]
Casing
Base = 20 mm DT61N 60/85 1200 ... 1600 1400 9,8 120 F = 1000 0,52 0,16 TP20
DT92N 92/85 1000 ... 1600 1800 16,2 150 F = 1000 0,37 0,1 TP20
DTI04N 104/85 1000 ... 1400 1800 16,2 150 F = 1000 0,37 0,1 TP20
Base = 34 mm DT142N 142/85 1200 ... 1600 4100 84 200 F = 1000 0,22 0,06 TP34
DT162N 162/85 1200 ... 1600 4400 97 200 F = 1000 0,2 0,06 TP34
Base = 50 mm DT150N 150/85 1800 ... 2600 4000 80 300 F = 1000 0,13 0,04 TP50
DTI70N 170/85 1000 ... 1800 4600 106 250 F = 1000 0,17 0,04 TP50
DT210N 210/85 1000 ... 1800 5800 168 200 F = 1000 0,13 0,04 TP50
DT250N 250/85 1000 ... 1800 7000 245 250 F = 1000 0,13 0,04 TP50
DT285N 285/92 1200 ... 1600 8000 320 250 F = 1000 0,13 0,04 TP50
Base = 60 mm DT310N 310/85 2000 ... 2600 9000 405 300 F = 1000 0,078 0,02 TP60
DT425N 425/85 1000 ... 1800* 12500 781 250 F = 1000 0,078 0,02 TP60
DT500N 500/85 1000 ... 1800 14500 1051 250 F = 1000 0,065 0,02 TP60
Caution:
*highest voltage for special order
