Manufacturer: COBA Europe

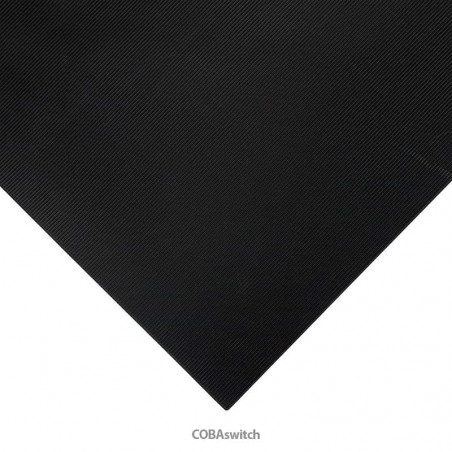

Electro-insulating mats

COBAswitch

Purpose-designed switchboard matting

  • Provides safety for operatives against electrical shocks.
  • For use in front of switchboards and high voltage
    equipment.
  • Slip-resistant fine fluted surface.
  • 6mm tested to 11,000 volts for 450 volt rated working.
  • 9.5mm tested to 15,000 volts for 650 volt rated working.
  • 9.5mm conforms to BS921/1976.
Product height: 6mm or 9.5mm
Dimensions 6 mm 9,5 mm
0,9 m x mb. (maks. 10 m) SM010010C SM010030C
0,9 m x 10 m SM010010 SM010030
1,2 m x mb. (maks. 10 m) SM010020C SM010040C
1,2 m x 10 m SM010020 SM010040



COBAswitch BS EN: 61111

Electrical insulating matting that conforms to BS EN 61111:2009

  • Provides safety for operatives against electrical shocks.
  • Ideal for use in front of switchboards and high voltage equipment.
  • 3mm thick meets Class 2 (please see below table for working voltage).
  • 4.5mm thick meets Class 4 (please see below table for working voltage).
  • Ribbed surface offers traction underfoot.
  • Resistant to acid, oil, and low temperature.
  • Manufactured with colour coded tape to depict the classification on the reverse of the matting.
Wymiary Klasa 0 (3 mm) Klasa 2 (4 mm) Klasa 4 (5 mm)
1 m x mb. (maks. 10 m) SM010050C SM010060C SM010070C
1 m x 10 m SM010050 SM010060 SM010070

COBAswitch VDE

Electrical switchboard matting

  • Lightweight mat designed for use in front of open switchboards and high voltage equipment. Provides safety for operatives against electric shock.
  • Fine fluted surface has slip-resistance benefits.
  • Tested to 50,000 volts according to DIN EN60243-1
    (VDE0303 part 21) IEC 60243-2:1996
Product height: 4.5mm
Dimensions Product Code
1 m x mb. (maks. 10 m) SM060010C
1 m x 10 m SM060010

Maty elektroizolacyjne COBAswitch



Thickness Tested to Voltage
3 mm BS EN 61111:2009, Class 0 1 000V
4 mm BS EN 61111:2009, Class 2 26 500V
5 mm BS EN 61111:2009, Class 4 36 000V



COBAswitch VDE Maty elektroizolacyjne
