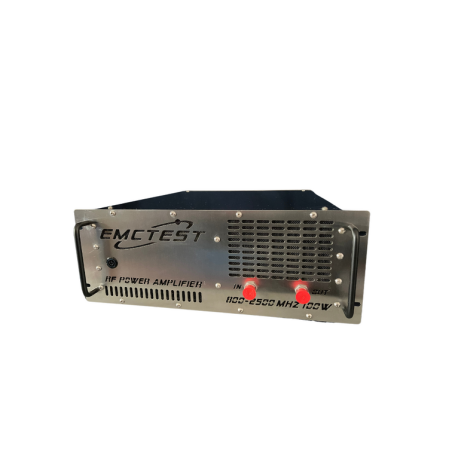

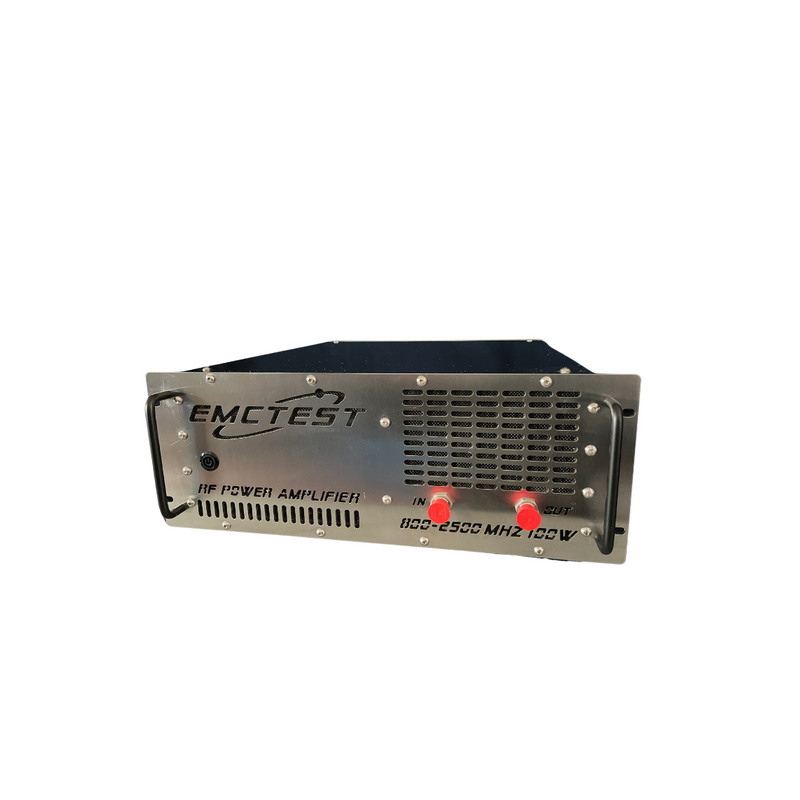

EMC0825S50A Power Amplifier
EMC0825S50A Power Amplifier
EMC0825S50A Power Amplifier
EMC0825S50A Power Amplifier

Photos are for informational purposes only. View product specification

please use latin characters

EMC0825S50A Power Amplifier

  • EMC0825S50A
  • Dimensions 485 x 482 x 180 mm
  • Contacts N-Type
  • Resistance R 50 Ohm
  • Power supply 100 - 240 V ; 50 / 60 Hz
  • Frequency 800 - 2500 MHz
  • Output power 100W
  • Weight 20 kg
  • Gain 50 dB
The EMC0825S50A is a high-power rack-mount amplifier with a built-in AC power supply suitable for a wide range of laboratory applications. This rugged amplifier is capable of amplifying signals up to 100 W of average output power across its operating bandwidth. The amplifier's output stage is further fail-safe, allowing for high-power operation for up to 5 minutes, even with an open or short-circuited load.

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

  • Dimensions 485 x 482 x 180 mm
  • Contacts N-Type
  • Resistance R 50 Ohm
  • Power supply 100 - 240 V ; 50 / 60 Hz
  • Frequency 800 - 2500 MHz
  • Output power 100W
  • Weight 20 kg
  • Gain 50 dB
The EMC0825S50A is a high-power rack-mount amplifier with a built-in AC power supply suitable for a wide range of laboratory applications. This rugged amplifier is capable of amplifying signals up to 100 W of average output power across its operating bandwidth. The amplifier's output stage is further fail-safe, allowing for high-power operation for up to 5 minutes, even with an open or short-circuited load.
