EMI Mesh
  • EMI Mesh

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: OPTICAL FILTERS

EMC grid

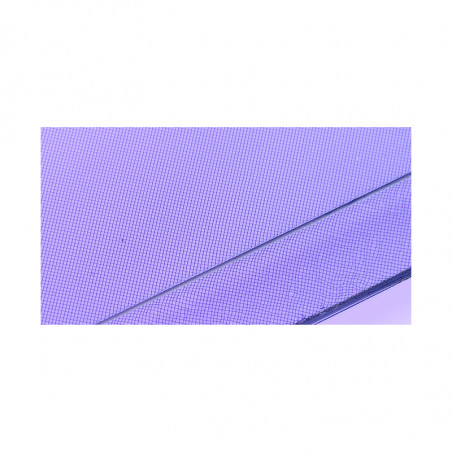

EMI Mesh

Description:
Woven meshes for shielded windows, apertures and displays where an electronic enclosure requires shielding from electromagnetic interference (EMI) oris emitting electromagnetic energy which may cause interference with another system but requires a high level of visible light transmission or image clarity.

Product range

  • Blackened 100opi copper is a rugged mesh that is recommend for standalone use.
  • EmiClare Mesh is Optical filters proprietary mesh optimised for optical performance without sacrificing
    EMI performance. This is only supplied in finished window formats Sigma and Ultra
  • MicroMesh is an subtractive copper grid matrix with higher light transmission and optical clarity. This is
    only supplied in fully laminated windows.
  • Conventional plated and blackened stainless steel metal mesh are also available.
  • 15ohms/sq EMI-ito coated polyester film that has no grid but lower shielding effectiveness.


Tabele

Material Light T% Surface Resistivity
Ohms/sq
 Format
EmiClare Mesh 80% 0.030 Fully laminated Sigma or Ultra window
EmiClare MicroMesh 89% 0.050 Fully laminated windows only
50opi Blk copper 80% 0.010 Fully laminated windows or framed parts
50opi .030pm Blk Cu plated S/S 80% 0.025 Sheets 450 x 600 mm
80opi .030pm Blk Cu plated S/S 65% 0.020 Sheets 450 x 600 mm
100opi .030pm Blk Cu plated S/S 60% 0.020 Sheets 450 x 600 mm
100opi .050pm OFL Blk Copper 60% 0.010 Sheets from 600 mm sq upto rolls 2000mm wide
100opi .050pm unblk copper 60% 0.010 Rolls 1200 mm wide
EMI-ito 15 film 82% 15 Sheets from 350mm sq upto rolls 762mm wide

Damping characteristics

Siatka EMC

Blackening
To eliminate light reflections the mesh is blackened. Optical filters proprietary blackening system is highly conductive and enhances shielding effectiveness at frequencies below 10GHz. The stainless steel meshes are copper plated before blackening.


Order example
MESH - BLK - CU - 100 OPI - 600x900 - mesh sheet 100 OPI 600x800mm
MESH - BLK - CU - 100 OPI - 600x1200 - mesh sheet 100 OPI 600x1200mm
