Hermetic housing Z74J PS Z74JPS
Hermetic housing Z74J PS Z74JPS

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: KRADEX

Hermetic enclosure Z74J PS Z74JPS

  • Z74J PS
  • Length 176,8mm
  • Width 126mm
  • Height

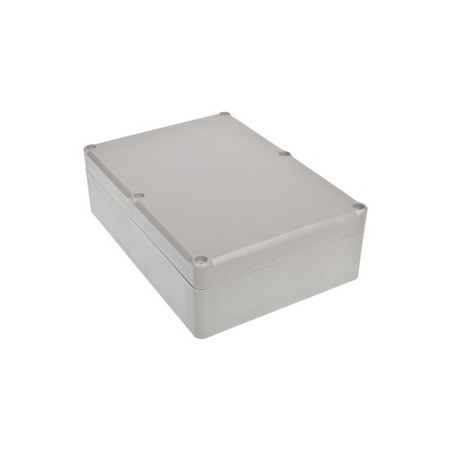

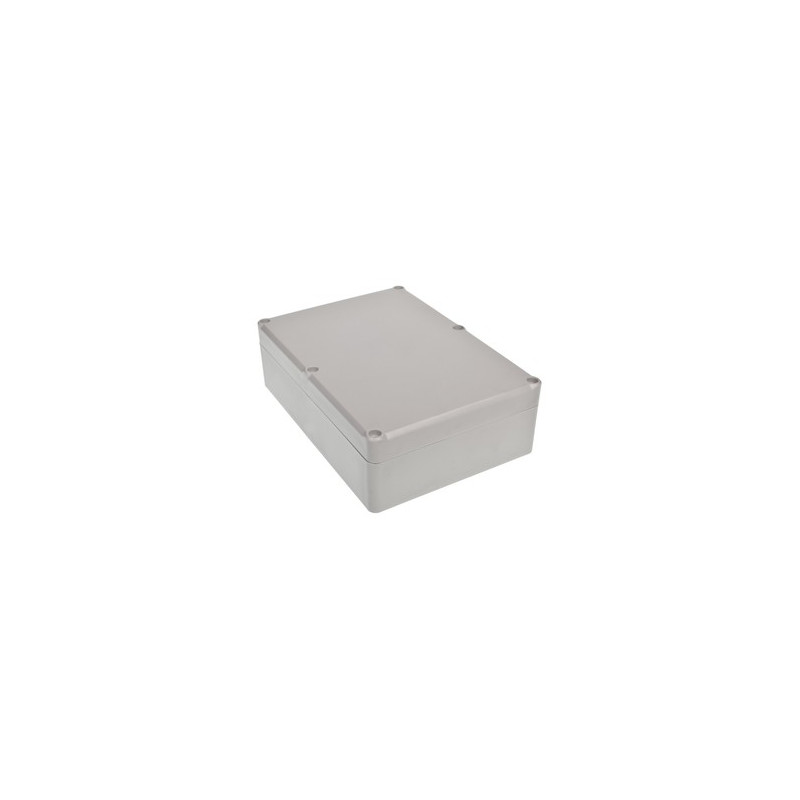

Hermetic enclosure Z74J PS Z74JPS made of polystyrene (PS) and ABS is a durable and sealed design, created to protect electronic devices in demanding conditions. The full model, light gray (code J), with dimensions 176.8 × 126.0 × 55.7 mm, is available in a version without a gasket, although the series also includes options with gaskets and brass bushings.

The enclosure has an IP65 protection rating, providing protection against dust and water, and a mechanical strength rating of IK09, ensuring impact resistance. This makes it ideal for environments exposed to moisture and mechanical factors.

Dimensions:

  • Length: 176.8 mm
  • Width: 126.0 mm
  • Height: 55.7 mm

Key features:

  • Material: polystyrene (PS) and ABS
  • Enclosure type: full, without gasket
  • Color: light gray (J)
  • Protection class: IP65 (dust and water protection)
  • Mechanical strength class: IK09 (impact resistance)
  • Series options: versions with gasket, brass bushings, various colors, and transparent elements

The hermetic enclosure Z74J PS Z74JPS is a reliable solution for industrial applications, automation, and electronics requiring high protection against moisture and mechanical damage.
