Environment temperature sensor - ACT-59

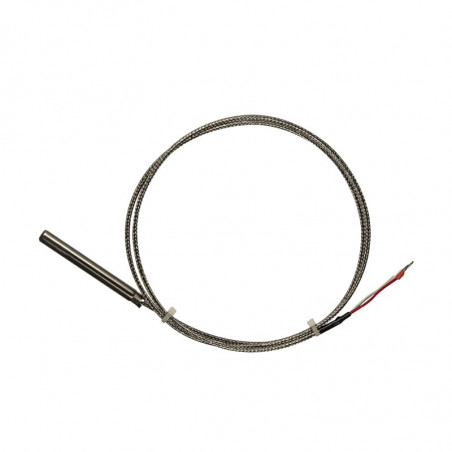

Resistance sensor with cable used for temperature measurement of machines endangered with shocks and vibrations. Shield is made from alloy steel and appropriate connection cable allows for measurement even in aggressive conditions and temperature up to +400°C.


SPECIFICATION:

SENSOR TECHNICAL PARAMETERS
Measurement resistor Version Characteristic Measurement range Accuracy class Max measurement current Connection type
1xPt100
2xPt100		 normal shockproof according to PN-EN-60751 from -50°C
to +400°C		 B 8 mA 2 cables
A 5 mA 3, 4
cables
-50°C...+150°C 1/3 B DIN 2 mA

Shield

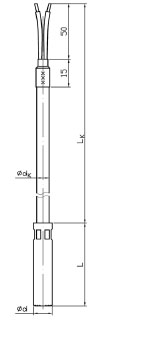

Material Masks. temp. Diameter d[mm] Bottom shape Length L [mm]
1.4571 + 400°C Ø4, Ø5, Ø6 kuliste, płaskie min. 25mm


Connection cable
Type Diameter Type Skład Max operation temperature Cable length LK
2 cables Ø2,9 L2GGD-2xO,22mm2 fibre glass +400°C arbitrary
3, 4 cables Ø3,1 L4GGD-4xO,22mm2 fibre glass +400°C
2 cables Ø4,2 L4TS-2xO,34mm2 teflon, silicon +180°C
3, 4 cables Ø4,3 L4TS-4xO,22mm2 teflon, silicon +180°C
3, 4 cables Ø2,9 L4TT-4xO,22mm2 teflon, teflon +260°C
2, 3 cables Ø3,8 L6TT-6xO,22mm2 teflon, teflon +260°C
2 cables Ø4,3 L2SDS-2xO,25mm2 silicon, +180°C
3, 4 cables Ø4,4 L4TDS-4xO,25mm2 teflon, +180°C
3, 4 cables Ø4 L4TFDT-4xO,22mm2 teflon, foil +260°C

MARKING:


A. Resistor type
 A

Single Ni100
 1xNI100

Single Pt100
 1xPt100

Double Pt100
 2xPt100
B. Accuracy class
 B

B
 B

A
 A

1/3 B DIN
 1/3 B DIN
C. Shield diameter d
 C

Ø4 x0,5mm
 4

Ø5 x0,5mm
 5

Ø6 x0,5mm
 6
D. Shield length
 D

L(min.25 mm)
 give in mm
E. Cover material
 E

1.4571
 1.4571
F. Connection and cable type
 f
  2 cables (L2GGD) 2p-L2GGD
  3 cables (L4GGD) 3p-L4GGD
  4 cables (L4GGD) 4p-L4GGD
  2 cables (L2TS) 2p-L2TS
  3 cables (L4TS) 3p-L4TS
  4 cables (L4TS) 4p-L4TS
  3 cables (L4TT) 3p-L4TT
  4 cables (L4TT) 4p-L4TT
  2 cables (L6TT) 2p-L6TT
  3 cables (L6TT) 3p-L6TT
  2 cables (L2SDS) 2p-L2SDS
  3 cables (L4TDS) 3p-L4TDS
  4 cables (L4TDS) 4p-L4TDS
  3 cables (L4TFDT) 3p-L4TFDT
  4 cables (L4TFDT) 4p-L4TFDT
G. Cable length
 G
  LK give in mm
H. Operation temperature
 H
  T give in °C
I. Sensor version
 I
  normal Z
  shockproof W

Uwaga
Istnieje możliwość wykonania odmian nietypowych.
