Product overview EQ cores
  • Product overview EQ cores

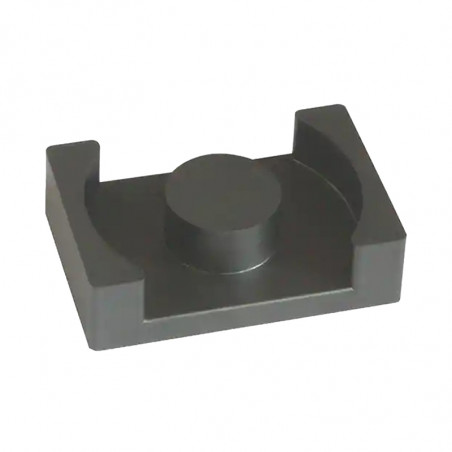

Photos are for informational purposes only. View product specification

Product overview EQ cores

Product overview EQ cores

Core typeVe
[mm3]
Ae
[mm2]
Mass
[g]
Datasheets

EQ13

348 19.9 0.9 EQ13.pdf

EQ20/R

1960 59.0 5.5 EQ20R.pdf

EQ25

4145 100 12 EQ25.pdf

EQ25/LP

2370 89.7 5 EQ25LP.pdf

EQ30

4970 108 13.5 EQ30.pdf

EQ38/8/25

7900 152 21.5 EQ38825.pdf
