Manufacturer: Eaton / CEAG

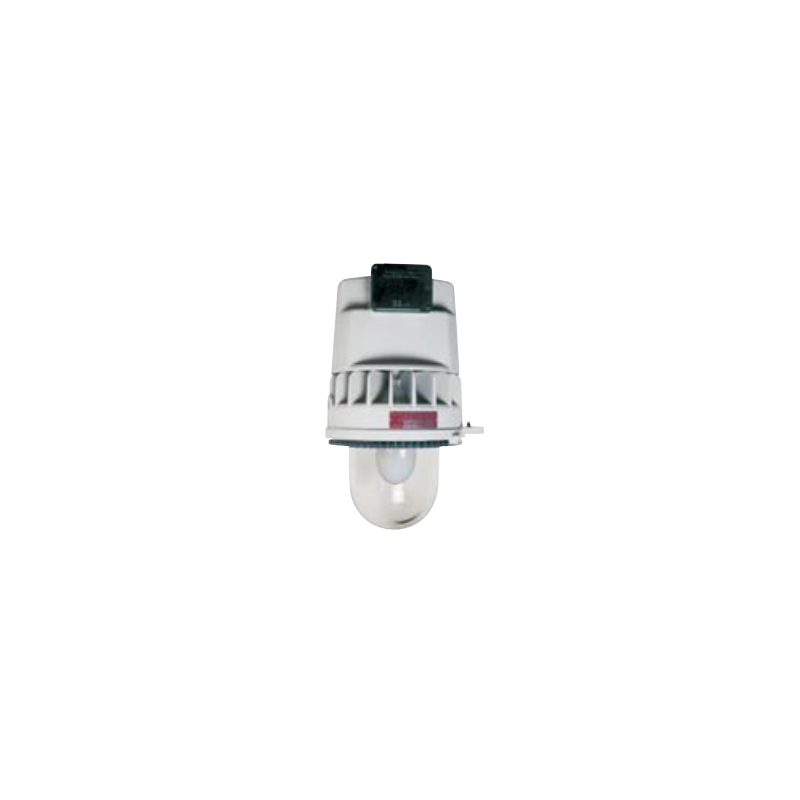

EVS 250 ZM, -45 °C up to +55 °C NOR 000 115 110 888

  • NOR 000 115 110 888
  • Theard 2 x M25
  • Weight 22.4 kg
  • 1 x M25 Ex-e
  • LAMP HSE 250 W
  • STRUMIENSWIE 25000 lm

Pendant Luminaires for High-Pressure Discharge Lamps EV / dHLS / EVZ

Pendant Ex Luminaires for High-Pressure Discharge Lamps

The EV, dHLS, and EVZ series of luminaires are designed for high-pressure discharge lamps. The gear and light sources are housed in a single housing. The explosion-proof housings are connected using an easy-to-install Ex-e connector. The protective cover is made of borosilicate glass, highly resistant to impact and high temperatures. All external components are made of stainless steel.

Light source replacement is achieved by opening a PTFE-coated connecting ring. Both the diffuser and the ring are hinged for easy access. Depending on the model, the luminaires are certified for operation in temperatures ranging from -45°C to +55°C.

EV – Pendant Lighting Fixture with 2 Housing Sizes

The EV series is suitable for use with sodium vapor and high-pressure metal halide lamps.

  • Smaller housing: for lamps up to 125 W
  • Larger housing: for lamps up to 250 W

Thanks to their durability and safety, EV luminaires have been used for many years in chemical plants and offshore platforms to illuminate large areas or objects. The luminaire can be equipped with a glass dome or an optional external reflector.

dHLS – Robust Pendant Luminaire

The dHLS model is certified for use in hazardous areas (Zones 1 and 2) and is compatible with 250W and 400W high-pressure lamps.

  • The housing is made of a light alloy with a powder coating.
  • Thanks to its high mechanical resistance, the luminaire is suitable for use in harsh environments.

EVZ – Universal Luminaire

EVZ luminaires are available in two versions:

  • 70–150W
  • 150–400W

They can be mounted on a wall or pole using a swivel bracket. Two external spotlights and a mesh cover are optionally available.

Features:

  • Various housing sizes
  • Designed for high-pressure discharge lamps
  • Rugged construction for harsh environments
  • Large Ex-e terminal chamber
  • Wide ambient temperature range depending on the version: from -45°C to +55°C
  • CU certification available for the Eurasian Economic Community
  • Meets the highest standards of anti-corrosion protection and mechanical strength
Parameter EV-S 125 W (small housing) EV-S 250 W (large housing) (housing)
EU-Type Examination Certificate LOM 02 ATEX 2012 X LOM 02 ATEX 2012 X
IECEx Certificate of Conformity IECEx BKI 07.0031X IECEx BKI 07.0031X
Marking according to 2014/34/EU II 2 G Ex de IIC T4 Db
II 2 D Ex tD IIIC T…°C Db		 II 2 G Ex de IIC T4 Db
II 2 D Ex tD IIIC T…°C Db
IECEx marking Ex de IIC T4 Gb
Ex tD A21 IP67 T…°C		 Ex de IIC T4 Gb
Ex tD A21 IP67 T…°C
Ambient temperature range -20 °C to +55 °C
-45 °C to +55 °C (optional)		 -20 °C to +55 °C
-45 °C to +55 °C (optional)
Rated voltage 230 V AC 230 V AC
Frequency 50 Hz 50 Hz
Power factor (cos φ) ≥ 0.85 ≥ 0.85
Ignition system electromagnetic electromagnetic
Protection class I I
Source type Lights HME 125 W, HSE 70 W HME 250 W, HSE 150–250 W, HIE 250 W
Light source name High-pressure sodium lamp High-pressure sodium lamp, metal halide lamp
Luminous flux See luminaire data table See luminaire data table
Socket E27 according to IEC 60238 E40 according to IEC 60238
Light Efficiency 76% 76%
Dimensions (L × W × H) 480 mm × Ø 245 mm 560 mm × Ø 300 mm
Connection Terminals (Ex-e) L, N, PE: 2 × 2.5 mm²
PE outer: 2 × 6 mm²		 L, N, PE: 2 × 2.5 mm²
PE outer: 2 × 6 mm²
Housing Color Epoxy Paint, Body RAL 7032 / Cover RAL 7016 / Ring RAL 6005 As shown
Housing Material Aluminum Alloy Aluminum Alloy
Weight 14.1 kg 22.4 kg
Cable Threads / Glands / Holes 2 × M25 Thread (Ex-e), 1 × Plugged 2 × M25 Thread (Ex-e), 1 × blind plug
Mounting type Ceiling mounting Ceiling mounting
Protection class according to EN 60529 IP66 IP66
Protective cover Borosilicate glass Borosilicate glass

Light source Power Luminous flux Luminaire type Small housing Large housing Temperature class II 2 G
Ta ≤ 40 °C		 Temperature class II 2 G
Ta ≤ 55 °C		 Max. surface temperature II 2 D
Ta ≤ 40 °C		 Max. surface temperature II 2 D
Ta ≤ 55 °C
HSE high pressure sodium lamp 70 W 5600 lm EVS 70 ZM X T5 T4 T95 °C T110 °C
HSE high pressure sodium lamp 150 W 14000 lm EVS 150 ZM X T5 T4 T90 °C T105 °C
HSE high pressure sodium lamp 250 W 25000 lm EVS 250 ZM X T4 T4 T115 °C T130 °C
Metal halide lamp HIE 250 W 19000 lm EVS 250 ZM X T4 T3 T125 °C T140 °C

Parameter Value
EC type examination certificate DMT 03 ATEX E 039
IECEx Certificate of Conformity IECEx BVS 11.0066
Marking according to 2014/34/EU II 2 G Ex de IIC T3 Gb
Marking according to IECEx Ex de IIC T3 Gb
Permissible Ambient Temperature -20 °C to +50 °C / -20 °C to +55 °C (250 W), -50 °C to +50 °C (optional)
Nominal voltage 230 V AC
Frequency 50 Hz
Power factor cos φ 0.5 ind. / 0.9 comp. ²
Circuit Inductive circuit / compensated circuit ²
Protection class I
Lamp / light source HSE / HME 250 - 400 W
Lamp type Mercury lamp, high-pressure sodium lamp
Rated luminous flux ¹
Lamp base E40 in accordance with IEC 60238
Connection terminals L, N, PE max. 2 x 2.5 mm²
Housing material Light alloy with powder coating
Weight 30 kg
Cable glands / bushings / housing openings 1 x M25 x 1.5 for cables Ø 8 - 17 mm, 1 x M25 x 1.5 with blanking plug
Mounting type Ceiling mounting
Protection class according to EN 60529 IP65
Protective cover / shade Borosilicate glass

Lamp Power Luminous flux Type
High-pressure sodium lamp (HSE) 250 W 25000 lm dHLS 85250
High-pressure sodium lamp HSE 400 W 48000 lm dHLS 85400

Parameter EVZ (small housing) EVZ (large case)
EC type examination certificate TÜV 12 ATEX 7169X TÜV 12 ATEX 7169X
IECEx Certificate of Conformity IECEx CQM 11.0002 IECEx CQM 11.0002
Marking according to 2014/34/EU II 2 G Ex de IIC T6 Gb ¹
II 2 D Ex tb IIIC T6 ¹
Ex tb A21 IP66 T ¹		 II 2 G Ex de IIC T6 Gb ¹
II 2 D Ex tb IIIC T6 ¹
Ex tb A21 IP66 T ¹
Marking according to IECEx Ex de IIC T6 Gb ¹
Ex tb A21 IP66 T ¹		 Ex de IIC T6 Gb ¹
Ex tb A21 IP66 T ¹
Permissible ambient temperature -40 °C to +55 °C -40 °C to +55 °C
Frequency 50 Hz 50 Hz
Power factor cos φ ≥ 0.9 ≥ 0.9
Protection class I I
Lamp / light source HSE 70 - 150 W, HIE 70 - 150 W HSE 250 - 600 W, HIE 250 - 400 W
Lamp type High-pressure sodium lamp, metal halide lamp High-pressure sodium lamp, metal halide lamp
Rated luminous flux ¹ ¹
Lamp base E27 according to IEC 60238 (HSE 70–150 W)
E40 according to IEC 60238 (HSE 100–150 W)		 E40 according to IEC 60238
Dimensions (diameter x height) Ø 215 mm × 480 mm Ø 300 mm × 599 mm
Connection terminals (Ex-e) 3 x 2 x 4 mm² (L, N, PE), max. 2 wires. 3 x 2 x 4 mm² (L, N, PE), max. 2 wires.
Housing Color Gray Gray
Housing Material Copper-clad Aluminum Copper-clad Aluminum
Weight 14.1 kg 22.4 kg
Glands / Holes / Plugs 2 x M25 thread, 1 x Ex-e screw plug 2 x M25 thread, 1 x Ex-e screw plug
Mounting type Ceiling mounting Ceiling mounting
Protection class according to EN 60529 IP66 IP66
Protective cover Tempered glass Tempered glass

Lamp Power Luminous flux Type Temperature class II 2 G
< 40/50C		 Temp. area max II 2 D
< 40/50C
HSE high pressure sodium lamp 70 W 5600 lm EVZ/S/07* T5 / T4 83 °C / 98 °C
HSE high pressure sodium lamp 100 W 8800 lm EVZ/S/10* T5 / T4 94 °C / 109 °C
High Pressure Sodium Lamp HSE 150 W 14000 lm EVZ/S/15* T4 / T3 113 °C / 128 °C
High Pressure Sodium Lamp HSE 250 W 25000 lm EVZ/M/25* T3 / T3 134 °C / 149 °C
High Pressure Sodium Lamp HSE 400 W 38000 lm EVZ/M/40* T3 / T3 148 °C / 163 °C
HIE metal halide lamp 70 W 5600 lm EVZ/S/07* T5 / T4 83 °C / 98 °C
HIE metal halide lamp 100 W 8800 lm EVZ/S/10* T5 / T4 94 °C / 109 °C
HIE metal halide lamp 150 W 11000 lm EVZ/S/15* T4 / T3 111 °C / 126 °C
HIE metal halide lamp 250 W 25000 lm EVZ/M/25* T4 / T3 132 °C / 147 °C
HIE metal halide lamp 400 W 33000 lm EVZ/M/40* T3 / T3 167 °C / 182 °C

Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Theard 2 x M25
  • Weight 22.4 kg
  • 1 x M25 Ex-e
  • LAMP HSE 250 W
  • STRUMIENSWIE 25000 lm

Pendant Luminaires for High-Pressure Discharge Lamps EV / dHLS / EVZ

Pendant Ex Luminaires for High-Pressure Discharge Lamps

The EV, dHLS, and EVZ series of luminaires are designed for high-pressure discharge lamps. The gear and light sources are housed in a single housing. The explosion-proof housings are connected using an easy-to-install Ex-e connector. The protective cover is made of borosilicate glass, highly resistant to impact and high temperatures. All external components are made of stainless steel.

Light source replacement is achieved by opening a PTFE-coated connecting ring. Both the diffuser and the ring are hinged for easy access. Depending on the model, the luminaires are certified for operation in temperatures ranging from -45°C to +55°C.

EV – Pendant Lighting Fixture with 2 Housing Sizes

The EV series is suitable for use with sodium vapor and high-pressure metal halide lamps.

  • Smaller housing: for lamps up to 125 W
  • Larger housing: for lamps up to 250 W

Thanks to their durability and safety, EV luminaires have been used for many years in chemical plants and offshore platforms to illuminate large areas or objects. The luminaire can be equipped with a glass dome or an optional external reflector.

dHLS – Robust Pendant Luminaire

The dHLS model is certified for use in hazardous areas (Zones 1 and 2) and is compatible with 250W and 400W high-pressure lamps.

  • The housing is made of a light alloy with a powder coating.
  • Thanks to its high mechanical resistance, the luminaire is suitable for use in harsh environments.

EVZ – Universal Luminaire

EVZ luminaires are available in two versions:

  • 70–150W
  • 150–400W

They can be mounted on a wall or pole using a swivel bracket. Two external spotlights and a mesh cover are optionally available.

Features:

  • Various housing sizes
  • Designed for high-pressure discharge lamps
  • Rugged construction for harsh environments
  • Large Ex-e terminal chamber
  • Wide ambient temperature range depending on the version: from -45°C to +55°C
  • CU certification available for the Eurasian Economic Community
  • Meets the highest standards of anti-corrosion protection and mechanical strength
Parameter EV-S 125 W (small housing) EV-S 250 W (large housing) (housing)
EU-Type Examination Certificate LOM 02 ATEX 2012 X LOM 02 ATEX 2012 X
IECEx Certificate of Conformity IECEx BKI 07.0031X IECEx BKI 07.0031X
Marking according to 2014/34/EU II 2 G Ex de IIC T4 Db
II 2 D Ex tD IIIC T…°C Db		 II 2 G Ex de IIC T4 Db
II 2 D Ex tD IIIC T…°C Db
IECEx marking Ex de IIC T4 Gb
Ex tD A21 IP67 T…°C		 Ex de IIC T4 Gb
Ex tD A21 IP67 T…°C
Ambient temperature range -20 °C to +55 °C
-45 °C to +55 °C (optional)		 -20 °C to +55 °C
-45 °C to +55 °C (optional)
Rated voltage 230 V AC 230 V AC
Frequency 50 Hz 50 Hz
Power factor (cos φ) ≥ 0.85 ≥ 0.85
Ignition system electromagnetic electromagnetic
Protection class I I
Source type Lights HME 125 W, HSE 70 W HME 250 W, HSE 150–250 W, HIE 250 W
Light source name High-pressure sodium lamp High-pressure sodium lamp, metal halide lamp
Luminous flux See luminaire data table See luminaire data table
Socket E27 according to IEC 60238 E40 according to IEC 60238
Light Efficiency 76% 76%
Dimensions (L × W × H) 480 mm × Ø 245 mm 560 mm × Ø 300 mm
Connection Terminals (Ex-e) L, N, PE: 2 × 2.5 mm²
PE outer: 2 × 6 mm²		 L, N, PE: 2 × 2.5 mm²
PE outer: 2 × 6 mm²
Housing Color Epoxy Paint, Body RAL 7032 / Cover RAL 7016 / Ring RAL 6005 As shown
Housing Material Aluminum Alloy Aluminum Alloy
Weight 14.1 kg 22.4 kg
Cable Threads / Glands / Holes 2 × M25 Thread (Ex-e), 1 × Plugged 2 × M25 Thread (Ex-e), 1 × blind plug
Mounting type Ceiling mounting Ceiling mounting
Protection class according to EN 60529 IP66 IP66
Protective cover Borosilicate glass Borosilicate glass

Light source Power Luminous flux Luminaire type Small housing Large housing Temperature class II 2 G
Ta ≤ 40 °C		 Temperature class II 2 G
Ta ≤ 55 °C		 Max. surface temperature II 2 D
Ta ≤ 40 °C		 Max. surface temperature II 2 D
Ta ≤ 55 °C
HSE high pressure sodium lamp 70 W 5600 lm EVS 70 ZM X T5 T4 T95 °C T110 °C
HSE high pressure sodium lamp 150 W 14000 lm EVS 150 ZM X T5 T4 T90 °C T105 °C
HSE high pressure sodium lamp 250 W 25000 lm EVS 250 ZM X T4 T4 T115 °C T130 °C
Metal halide lamp HIE 250 W 19000 lm EVS 250 ZM X T4 T3 T125 °C T140 °C

Parameter Value
EC type examination certificate DMT 03 ATEX E 039
IECEx Certificate of Conformity IECEx BVS 11.0066
Marking according to 2014/34/EU II 2 G Ex de IIC T3 Gb
Marking according to IECEx Ex de IIC T3 Gb
Permissible Ambient Temperature -20 °C to +50 °C / -20 °C to +55 °C (250 W), -50 °C to +50 °C (optional)
Nominal voltage 230 V AC
Frequency 50 Hz
Power factor cos φ 0.5 ind. / 0.9 comp. ²
Circuit Inductive circuit / compensated circuit ²
Protection class I
Lamp / light source HSE / HME 250 - 400 W
Lamp type Mercury lamp, high-pressure sodium lamp
Rated luminous flux ¹
Lamp base E40 in accordance with IEC 60238
Connection terminals L, N, PE max. 2 x 2.5 mm²
Housing material Light alloy with powder coating
Weight 30 kg
Cable glands / bushings / housing openings 1 x M25 x 1.5 for cables Ø 8 - 17 mm, 1 x M25 x 1.5 with blanking plug
Mounting type Ceiling mounting
Protection class according to EN 60529 IP65
Protective cover / shade Borosilicate glass

Lamp Power Luminous flux Type
High-pressure sodium lamp (HSE) 250 W 25000 lm dHLS 85250
High-pressure sodium lamp HSE 400 W 48000 lm dHLS 85400

Parameter EVZ (small housing) EVZ (large case)
EC type examination certificate TÜV 12 ATEX 7169X TÜV 12 ATEX 7169X
IECEx Certificate of Conformity IECEx CQM 11.0002 IECEx CQM 11.0002
Marking according to 2014/34/EU II 2 G Ex de IIC T6 Gb ¹
II 2 D Ex tb IIIC T6 ¹
Ex tb A21 IP66 T ¹		 II 2 G Ex de IIC T6 Gb ¹
II 2 D Ex tb IIIC T6 ¹
Ex tb A21 IP66 T ¹
Marking according to IECEx Ex de IIC T6 Gb ¹
Ex tb A21 IP66 T ¹		 Ex de IIC T6 Gb ¹
Ex tb A21 IP66 T ¹
Permissible ambient temperature -40 °C to +55 °C -40 °C to +55 °C
Frequency 50 Hz 50 Hz
Power factor cos φ ≥ 0.9 ≥ 0.9
Protection class I I
Lamp / light source HSE 70 - 150 W, HIE 70 - 150 W HSE 250 - 600 W, HIE 250 - 400 W
Lamp type High-pressure sodium lamp, metal halide lamp High-pressure sodium lamp, metal halide lamp
Rated luminous flux ¹ ¹
Lamp base E27 according to IEC 60238 (HSE 70–150 W)
E40 according to IEC 60238 (HSE 100–150 W)		 E40 according to IEC 60238
Dimensions (diameter x height) Ø 215 mm × 480 mm Ø 300 mm × 599 mm
Connection terminals (Ex-e) 3 x 2 x 4 mm² (L, N, PE), max. 2 wires. 3 x 2 x 4 mm² (L, N, PE), max. 2 wires.
Housing Color Gray Gray
Housing Material Copper-clad Aluminum Copper-clad Aluminum
Weight 14.1 kg 22.4 kg
Glands / Holes / Plugs 2 x M25 thread, 1 x Ex-e screw plug 2 x M25 thread, 1 x Ex-e screw plug
Mounting type Ceiling mounting Ceiling mounting
Protection class according to EN 60529 IP66 IP66
Protective cover Tempered glass Tempered glass

Lamp Power Luminous flux Type Temperature class II 2 G
< 40/50C		 Temp. area max II 2 D
< 40/50C
HSE high pressure sodium lamp 70 W 5600 lm EVZ/S/07* T5 / T4 83 °C / 98 °C
HSE high pressure sodium lamp 100 W 8800 lm EVZ/S/10* T5 / T4 94 °C / 109 °C
High Pressure Sodium Lamp HSE 150 W 14000 lm EVZ/S/15* T4 / T3 113 °C / 128 °C
High Pressure Sodium Lamp HSE 250 W 25000 lm EVZ/M/25* T3 / T3 134 °C / 149 °C
High Pressure Sodium Lamp HSE 400 W 38000 lm EVZ/M/40* T3 / T3 148 °C / 163 °C
HIE metal halide lamp 70 W 5600 lm EVZ/S/07* T5 / T4 83 °C / 98 °C
HIE metal halide lamp 100 W 8800 lm EVZ/S/10* T5 / T4 94 °C / 109 °C
HIE metal halide lamp 150 W 11000 lm EVZ/S/15* T4 / T3 111 °C / 126 °C
HIE metal halide lamp 250 W 25000 lm EVZ/M/25* T4 / T3 132 °C / 147 °C
HIE metal halide lamp 400 W 33000 lm EVZ/M/40* T3 / T3 167 °C / 182 °C
