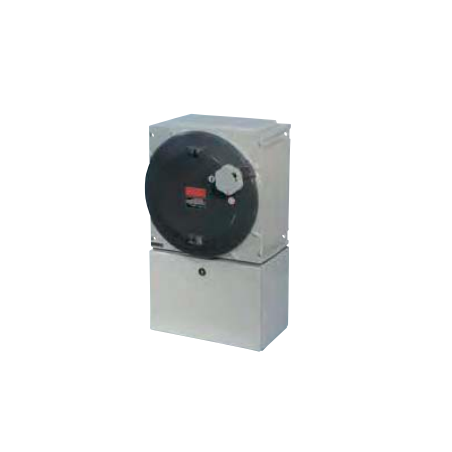

Main circuit breaker Ex 400A EXKO 73 1814 E0001
Main circuit breaker Ex 400A EXKO 73 1814 E0001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Eaton / CEAG

Main circuit breaker Ex 400A EXKO 73 1814 E0001

  • EXKO 73 1814 E0001
  • Material
  • Rated current
  • IP class
  • Cable gland

Safety for your protection

CEAG main circuit breakers enable the connection or disconnection of circuits under normal operating conditions, as well as the switching, short-term conduction, and interruption of currents in exceptional situations, such as short circuits.

Full switching capacity for motors in the AC-3 category

Full switching capacity for motors in the AC-3 category and insulation properties in accordance with the EN 60947-4-1 standard with mandatory opening of the main contacts in accordance with the EN 60204-1 standard are just some of the important features offered by CEAG circuit breakers.

Versions up to 180 A optionally offer a high degree of protection of IP66. The switch position is always clearly visible and easy to recognize.

The main circuit breakers feature an installation-friendly design and easily accessible connection terminals.

Metal versions can be equipped with screw-on flanges for easy system integration and cost-effective service life extension. Optionally, they can be supplied with plastic or brass snap-on flanges.

These circuit breakers are also available in versions for Explosion Group IIB, which is sufficient for many applications.

Parameter Specification
Marking according to 2014/34/EU II 2 G Ex de ia/ib[ia/ib] IIC T4 – T6*
II 2 D IP66 T80 °C / T95 °C / T130 °C
EC-Type Examination Certificate PTB 99 ATEX 1057
IECEx Certificate of Conformity IECEx PTB 12.0026
Marking according to IECEx Ex d IIC T6, T5, or T4 Gb / Ex de IIC T6, T5, or T4 Gb
Ex d IIB T6, T5, or T4 Gb / Ex de IIB T6, T5, or T4 Gb
Permissible ambient temperature –20 °C to +40 °C**
Rated voltage up to max. 690 V
Rated current max. 400 A
Frequency 50/60 Hz
Rated making/breaking capacity AC-3 according to EN 60947-3 Ue 230 V / Ie 400 A
Ue 400 V / Ie 400 A
Ue 500 V / Ie 400 A
Ue 690 V / Ie 400 A
Fuse fuse up to 400 V AC: 500 A gG
up to 500 V AC: 500A gG
up to 690 V AC: 500A gG
Connection terminals – main contact 150/95 mm²
Protection class I
Protection degree according to EN 60529 IP54 (optional IP65)
Cable glands / mounting holes M63 gland – see order details
Weight 3-pole version: approx. 85 kg
4-pole version: approx. 90 kg
Housing material powder-coated aluminum polyester, junction box powder-coated steel
Color Aluminum housing: gray (RAL 7032)
Steel housing: dark gray (RAL 7022)

*Also available for explosion group IIB
**Other ambient temperatures available upon request
