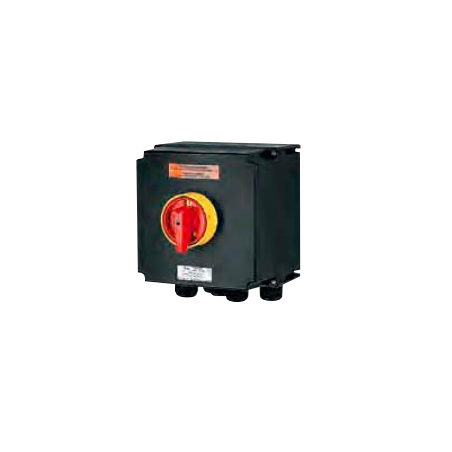

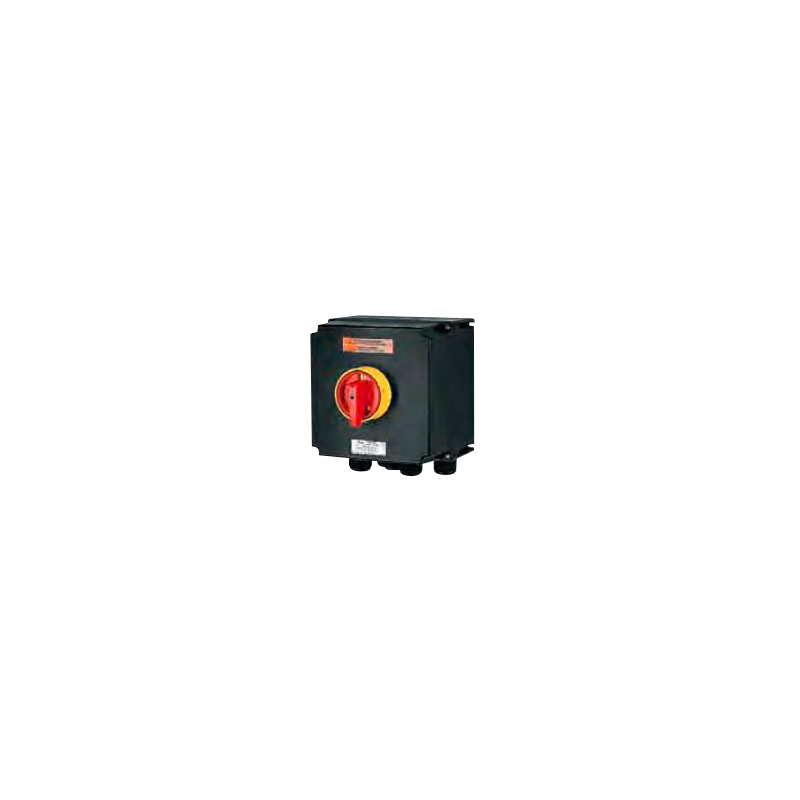

Safety switch Ex 40A GHG 263 0050 R0002

  • GHG 263 0050 R0002
  • Material
  • Rated current
  • IP class

  • Cable gland

Security for your protection

CEAG safety switches can be secured against accidental activation thanks to a built-in locking system that holds up to three padlocks in the OFF position. To prevent tampering, enclosure covers cannot be opened in the locked position without permanent damage.

Full AC-3 switching capacity

All CEAG safety switches offer full motor switching capacity according to utilization category AC-3 and insulation properties according to EN 60947-4-1, with positive break of the main contacts.

Optional versions with an EMERGENCY STOP function are also available, compliant with EN 60204-1.

Additional auxiliary contacts with delayed or early make (optional) provide double safety under extreme switching conditions.

Easy installation

CEAG safety switches are designed for easy installation and convenient access to the terminals. Connections.

Versions in impact-resistant polyamide or glass-fiber reinforced polyester provide IP66 protection for circuit breakers up to 180 A. They can optionally be equipped with plastic or brass clamping flanges. Safety switches for currents up to 630 A are supplied in metal enclosures with the option of being fitted with bolted flanges.

Explosion Group IIB

Safety switches with a current range of 210-630 A are also available in a version for Explosion Group IIB, which meets the requirements of most applications.

Enclosed switches for isolating installations during repairs and maintenance

The GHG 26 (10-160 A) and GHG 981 (25-80 A) circuit breakers have now been approved as compliant with the new IEC 62626-1 standard, Class 1.

The new IEC 62626-1 standard specifies requirements for safety switches (isolating switches) used to disconnect equipment during service and maintenance work. These requirements are more stringent than the IEC 60947-3 standard, which did not previously regulate this area.

The standard divides products into two classes:

  • Class 0 - for general use
  • Class 1 - for severe and difficult operating conditions

All products installed in ATEX/IECEx hazardous areas must meet Class 1 requirements.

Requirements for this class include: minimum mechanical strength, appropriate IP protection rating, tamper resistance, resistance to temperature, vibration, and corrosion, switching capacity, and locking capability.

Technical data:

Parameter Description
Marking according to 2014/34/EU II 2 G Ex ed ia IIC T6 / II 2 D Ex tD A21 IP66 T80 °C
EC type examination certificate PTB 99 ATEX 1161
IECEx Certificate of Conformity BKI 07.012
IECEx Marking Ex ed ia IIC T6 / Ex tD A21 IP66 T55 °C
Permissible Ambient Temperature –20 °C to +40 °C*
Rated Voltage up to max. 690 V
Rated current max. 40 A
Frequency 50/60 Hz
Making/breaking capacity AC-3 (according to EN 60947-3) Ue 230 V / Ie 40 A
Ue 400 V / Ie 40 A
Ue 500 V / Ie 40 A
Ue 690 V / Ie 40 A
DC-1 switching capacity / DC-23 (according to EN 60947-3) Ue 60 V / Ie 40 A (1 contact)
Ue 120 V / Ie 40 A (2 contacts connected in series)
Maintenance switch (according to IEC 62626-1) Class 1
Fuse protection up to 400 V AC: 80 A gG
up to 500 V AC: 80 A gG
up to 690 V AC: 63 A gG
Connection terminals Main contacts: 2 × 16 mm²
Auxiliary/signal contacts: 2 × 4 mm² (optional)
Protection class I
Protection degree (according to EN 60529) IP66
Cable entries / housing drillings M25 – details in order
M40 – details in order
Optional: threaded metal flange
Weight 3-pole version: approx. 2.30 kg
4-pole version: approx. 2.75 kg
6-pole version: approx. 6.50 kg
Housing material Glass fiber reinforced polyester
Housing color Black
Auxiliary contacts (optional) 1 × NO – delayed on/early off
1 × NC (6-pole version only) – early on/early off
Padlockable Lockable in the OFF position with 3 Commercially available padlocks (max. Ø 6 mm)

*Other temperature ranges available upon request.
