Manufacturer: Artidor

Presence sensor AR-024-DP01

  • AR-024-DP01

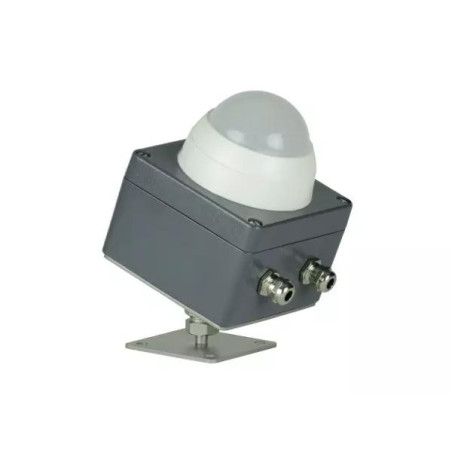

AR-024 — Explosion-proof Presence Sensor

Industrial presence sensor for explosion-hazardous areas 2/22 (gas/dust). It detects the movement of thermal objects using passive infrared, has a wide 360° detection angle, and has a long range. The aluminum housing (RAL 7015 painted) with nickel-plated cable glands and a stainless steel bracket ensure high environmental resistance IP65. Ideal for automatic control of lighting and auxiliary devices.

Parameters and functions

  • Ex marking (ATEX): II 3G Ex ec mc IIC T6 Gc / II 3D Ex mc tc IIIC T80°C Dc
  • Technology: Passive infrared (PIR), sensor power consumption approx. 0.8 W
  • Detection angle: 360° (circular) • Range: oval area 24 × 44 m
  • Mounting height: 2–15 m
  • Light threshold (adjustable): 10–2,000 lx
  • Switch-off delay (adjustable): 15 s – 30 min
  • Control output: potential-free contact (relay)
  • Switching capacity: up to 1,150 VA (resistive and slightly inductive loads)
  • Protection class: IP65 (EN 60529)

Technical data

Explosion protectionII 3G Ex ec mc IIC T6 Gc; II 3D Ex mc tc IIIC T80°C Dc
EU Directives2014/34/EU (ATEX 114); 2014/30/EU (EMC)
StandardsEN 60079-0:2018; EN 60079-7:2015/A1:2018; EN 60079-18:2015/A1:2017; EN 60079-31:2014
Sensor TypePIR (Passive Infrared)
Power Supply110–240 V AC, 50/60 Hz
OutputPotential-free contact (relay)
Connectors8 × 2.5 mm² terminals
Housing MaterialDie-cast aluminum (RAL 7015), nickel-plated brass cable glands
Cable glands2 × M20 (cable Ø 6–14 mm)
Mounting bracketstainless steel, holes Ø6.5 (4×), spacing 60 × 60 mm
Operating temperature−25…+50 °C
Housing dimensions (L × W × H)120 × 120 × 195 mm (with bracket, without glands)
Sensor dimensions65 × Ø98 mm
Weightapprox. 1.86 kg (with handle)
