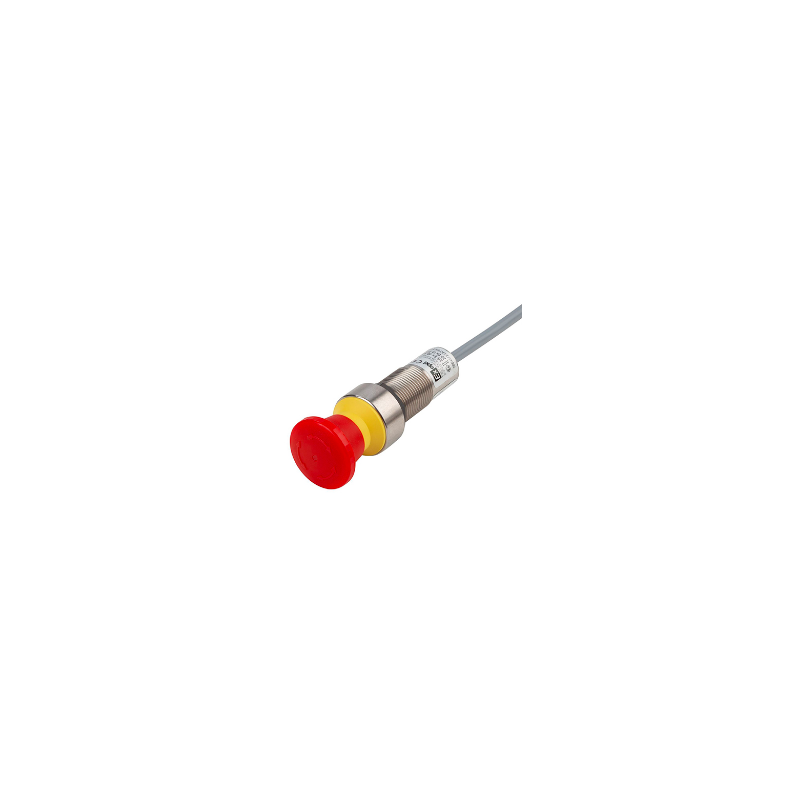

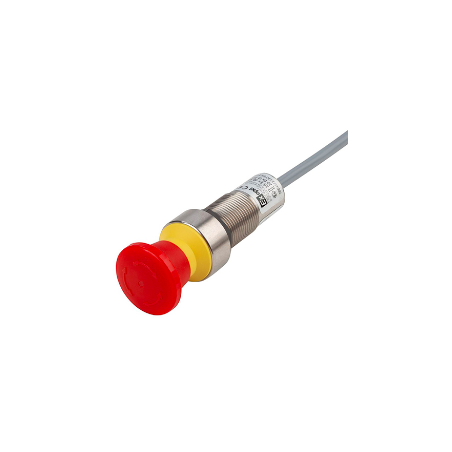

Emergency button type AB1-N3
Emergency button type AB1-N3

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: EXEPD

Emergency button type AB1-N3

  • AB1-N3
  • Power supply
  • ATEX

High IP protection and a corrosion-resistant stainless steel housing ensure a long service life, even in aggressive environmental conditions.

CONNECT and ACT – Thanks to its approval as a device, the emergency button can be mounted on the front of a machine in an Ex zone without additional certification. The shallow mounting depth allows for particularly space-saving use.

The emergency button has also been tested for installation in certified control panels with Ex e and Ex t protection types.

A plastic cap is included in the scope of delivery.

Weight
Category Parameter Value
Explosion-proof Protection type II 2G Ex db eb IIC T6 Gb
II 2D Ex tb IIIC T85°C Db
Certificate IBExU 22 ATEX 1083 X
Ambient temperature –20 °C ... +55 °C
Electrical data Operating voltage 230 VAC / 24 VDC (double insulation)
Power consumption max. 1 A
Type AB1-N3-*** (1 NC)**
Cable 2 × 0.5 mm² / Ø 4.8 mm
Electrical connections
(1) brown = COM
(2) blue = NC
Electrical Life 10,000 switching cycles (NC with forced opening)
Mechanical Data Housing Stainless Steel 1.4305
Sealing EPDM
Protection level IP 66
Impact resistance 7 Nm
Mounting hole 22.0 … 22.3 mm / M22 × 1.5
Tightening torque 8 Nm
Wall thickness for installation 1.0 … 15.0 mm
Logistics data 300 g (1.5 m cable)
Tariff code (HS code) 8536 5007
