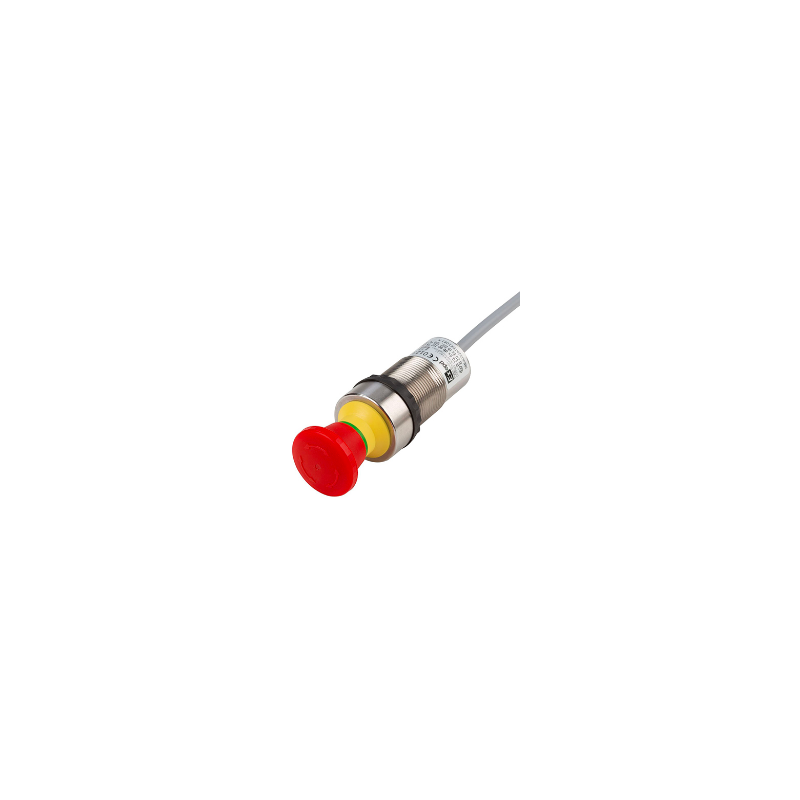

Exepd Emergency Button Type AB1-E3
Exepd Emergency Button Type AB1-E3

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: EXEPD

Exepd Emergency Button Type AB1-E3

  • AB1-E3
  • Power supply
  • ATEX

The AB1-E3 emergency stop button ensures safe shutdown of machines and systems in explosion-hazard zones: zones 1/2 and 21/22.

Thanks to the use of up to three contacts, a safe stop with additional feedback is possible.

The high IP protection rating and corrosion-resistant stainless steel housing guarantee a long service life, even in demanding environmental conditions.

CONNECT and ACT – thanks to its approval as a device, the button can be mounted directly on the front of a machine in an Ex zone, without the need for additional certification. The low installation depth allows for exceptionally space-saving use.

The emergency button has also been tested for installation in certified control panels with Ex e and Ex t protection.

The scope of delivery includes a plastic lock nut.

Customs code
Category Parameter Value
Explosion-proof Protection type II 2G Ex db eb IIC T6 Gb
II 2D Ex tb IIIC T85 °C Db
Certificate IBExU 22 ATEX 1083 X
Ambient temperature -20 °C ... +55 °C
Electrical data Operating voltage 230 VAC / 24 VDC (double insulated)
Power consumption max. 1 A
Electrical durability 10,000 switching cycles
Connections (AB1-E3) Wires 6 x 0.5 mm², Ø 6.9 mm
(1) brown com 1
(2) blue NC1
(3) gray com 2
(4) white NC2
(5) black com 3
(6) orange pin 3 (NC or NO - depending on configuration)
Mechanical Data Housing Material Stainless Steel 1.4305
Seal EPDM
Ingress Protection Rating IP66
Impact resistance 7 Nm
Mounting hole 30.0 ... 30.3 mm / M30 x 1.5
Tightening torque 8 Nm
Casing wall thickness 1.0 ... 15.0 mm
Logistics data Weight 350 g (1.5 m cable)
8536 5007
