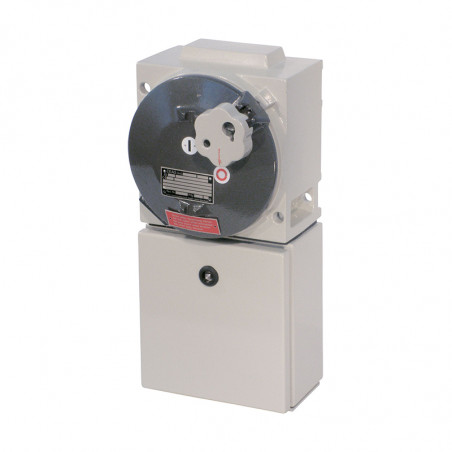

Power switch performed by explosion-proof 63 A
Power switch performed by explosion-proof 63 A

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Eaton / CEAG

Power switch performed by explosion-proof 63 A

Technical Specifications

Marking according to 94/9/EC (ATEX)

EC-Type Examination Certificate
IECEx Certificate of Conformity
Marking according to IECEx

Permissible Ambient Temperature
Rated Voltage
Rated Current
Frequency
Rated Switching Capacity AC-3 and Insulation
according to EN 60947-3

Backup Fuse


Connecting Terminals
Degree of Protection according to EN 60529
Protection Class
Glands
Weight

Housing Material

Color		 Ex II 2G Ex de ia/ib [ia/ib] IIC T4 – T61)
Ex II 2D IP66 T80°C / T95°C / T130°C
PTB 99 ATEX 1057
BKI 06.0006
Ex de ia/ib [ia/ib] IIC T6/T5/T4
Ex tD A21 IP66 T80°C / T95°C / T130°C
-20°C to +40°C2)
max. up to 690 V
max. 63 A
50/60 Hz
Ue 230 V / Ie 63 A
Ue 400 V / Ie 63 A
Ue 500 V / Ie 63 A
Ue 690 V / Ie 63 A
up to 400 V AC: 80 A gL
up to 500 V AC: 80 A gL
up to 690 V AC: 80 A gL
Main contact: 2 x 35 mm2
IP54 (option 65)
I
M50 (d = 21-35 mm) see order details
3-pole: approx. 17 kg
4-pole: approx. 18 kg
aluminium, polyester Powder-coated
Steel distribution box, powder-coated
Housing: Grey-Beige (RAL 7032)
Cover: Dark Grey (RAL 7022)

1) Also available for IIB.
2) Other ambient temperature ranges available on request.

Ordering Information

Version Cable Entries Product no.
63 A Explosion-proof Power Circuit Breaker
3-pole 2 x M50 EXKO 73 1813 A0001
4-pole 2 x M50 EXKO 73 1814 A0001

Other versions available at wish.

Dimensions [mm]
