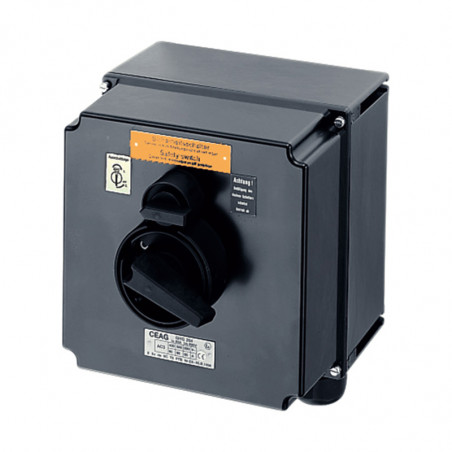

Explosion-proof safety switches for adjustable three-phase drives 80 A

Technical Specifications

Marking according to 94/9/EC (ATEX)
EC-Type Examination Certificate
IECEx Certificate of Conformity
Marking according to IECEx
Permissible Ambient Temperature
Rated Voltage
Rated Current
Frequency
Rated Switching Capacity AC-3 and Insulation
according to EN 60947-3

Backup Fuse


Connection Terminals

Degree of Protection according to EN 60529
Protection Class
Glands



Weight
Housing Material
Housing color
Auxiliary contact



Electronics lock

Locking		 Ex II 2G Ex ed ia IIC T6 / Ex II 2D Ex tD A21 IP66 T80°C
PTB 99 ATEX 1161
BKI 07.0012
Ex ed ia IIC T6, Ex tD A21 IP66 T53°C
-20°C to +40°C1)
max. up to 690 V
max. 40 A
50/60 Hz
Ue 230 V / Ie 40 A
Ue 400 V / Ie 40 A
Ue 500 V / Ie 40 A
Ue 690 V / Ie 32 A
up to 400 V AC 80 A gL
up to 500 V AC 80 A gL
up to 690 V AC 63 A gL
Main contact: 2 x 16 mm2
Auxiliary contact: 2 x 4 mm2
IP66
I
M25 (d = 8-17.5 mm) see order details
M40 (d = 17-28 mm) see order details
/>M50 (d = 22-35 mm) see order details
option: metal flange with 2 threaded inlets
approx. 4.3 kg
Polyester reinforced with glass fiber
black
1 x NO making, lagging; breaking
leading
1 x NC making, lagging; breaking
1 x NO making, lagging;
Early switch
can be locked in the "OFF" position with
three commercially available locks.


1) Other ambient temperature ranges are available upon request.

Ordering Information

Version Cable Entries Product No.
3-pole safety switch 40 A
Version with 2 auxiliary contacts (1 x NO; 1 x NC), 1 x electronics interlock (1 x NO)
3-pole 2 x M40 / 2 x M25 GHG 263 0053 R0001

Customized version on request, Ex ia auxiliary contacts available.

Dimensions [mm]

Accessories

Mounting plate for 3-pole 40 A explosion-proof safety switches
Type Application Mounting method Product No.
Size 3 2 x Boom Mount Screwing1) GHG 610 1953 R0110
Mounting Plate Accessories
Type Pieces per package Product No.
Label holder with label mounting plate (without label), sizes 1, 2, 2A, and 3 10 GHG 610 1953 R0057
Mounting kit for 1” pipes (Ø 27-30 mm) for mounting plates for boom mounting 10 GHG 610 1953 R0020

Product supplied in sets as listed in the tables.
