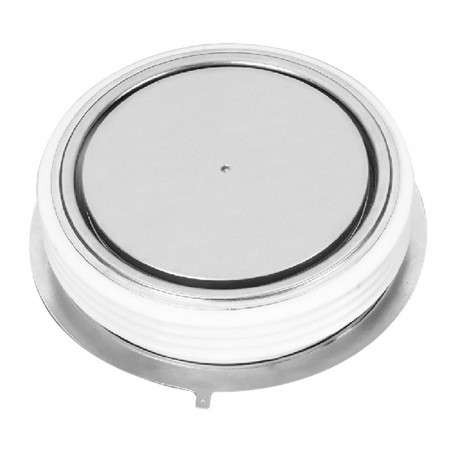

Fast diodes in the pellet housing

TypeIF((AV)/TC
[A/°C]		URRM
[V]		IFSM
[A]		I2t
[A2s]

trr
[µs]

Rthjc
[°C/W]

Tj(max)
[°C]

Casing drawing

number

1200 V
R622--30*SOO 300 / 70 400 - 1600 5500 132600 0,5 0,095 150 1
R622--40*SOO 400 / 70 200 - 1600 6750 227813 1 ÷ 2,0 0,095 150 1
R622--55*SOO 550 / 70 200 - 1600 9000 405000 2,0 0,095 150 1
R722--06*SOO 650 / 70 200 - 1600 11250 632813 1,0 ÷ 5,0 0,055 150 4
R722--08*SOO 800 / 70 200 - 1600 16500 1,3 x 106 1,0 ÷ 5,0 0,055 150 4
R7S2--09*SOO 900 / 70 200 - 1600 11250 632813 2,0 0,035 150 2
R7S2--10*SOO 1000 / 70 200 - 1600 16500 1361250 2,07 0,035 150 2
2600V
R722--05*SOO 500 / 70 200 - 2600 9750 475313 0 ÷ 5,0 0,055 150 4
R722--07*SOO 700 / 70 200 - 2600 14250 1,01 x 106 3,0 ÷ 5,0 0,055 150 4
R7S2--07*SOO 700 / 70 200 - 2600 9750 475313 3,0 ÷ 5,0 0,035 150 2
R7S2--08*SOO 800 / 70 200 - 2600 14250 1,01 x 106 5,0 0,035 150 2
3600V
R9G2--12*SOO 1200 / 70 200 - 3600 21000 2,2 x 106 3,0 ÷ 4,0 0,018 150 5
R9G2--15*SOO 1500 / 70 200 - 3600 27000 3,6 x 106 5,0 0,018 150 5

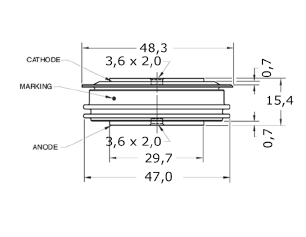

Drawing 1 dimensions [mm]

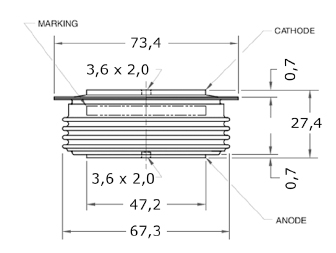

Drawing 2 dimensions [mm]

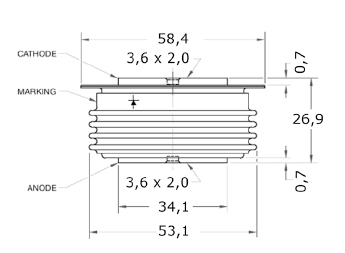

Drawing 3 dimensions [mm]
Drawing 4 dimensions [mm]
Drawing 5 dimensions [mm]
Drawing 6 dimensions[mm]
