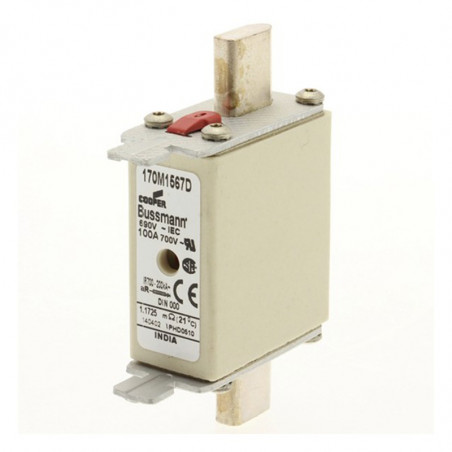

Fast knife fuses DIN

Table.660 VAC/700 VAC 10-315 A - SIZE 000 aR/gR Breaking capacity 200kARMS

SIZEIN
[A]
I2t
before arc
[A2s]
I2t
@
1000 V
[A2s]
Power loss
[W]
Characteristic TypeType
DIN with micro-relay Type T
Quantity in packagePackage weight
[kg]
000 10 3,8 25.5 3 gR

170M1558D

10 1,3
16 7,2 48 5,5 gR

170M1559D

10 1,3
30 11,5 78 7 gR

170M1560D

10 1,3
25 19 130 9 gR

170M1561D

10 1,3
32 40 270 10 gR

170M1562D

10 1,3
40 69 460 12 gR

170M1563D

10 1,3
50 115 770 15 gR

170M1564D

10 1,3
63 215 1450 16 gR

170M1565D

10 1,3
80 380 2550 19 aR

170M1566D

10 1,3
100 695 4650 24 aR

170M1567D

10 1,3
125 1200 8500 28 aR

170M1568D

10 1,3
160 2300 16000 32 aR

170M1569D

10 1,3
200 4200 28000 37 aR

170M1570D

10 1,3
250 7750 51500 42 aR

170M1571D

10 1,3
00 315 12000 80500 52 aR

170M1572D

6 1,3

Table.1000 VAC 20-225 A - SIZE 00 aR breaking capacity 150kARMS

SIZEUN
[V]
IN
[A]
I2t
before arc
[A2s]
I2t
@1000 V
[A2s]
Power loss
[W]
Type
DIN with micro-relay Type T
Quantity in packagePackage weight
[kg]
00 1000 20 15 110 8,5

170M2673

6 1,3
1000 25 28,5 210 9,5

170M2674

6 1,3
1000 32 53 390 11

170M2675

6 1,3
1000 35 69 500 12

170M2676

6 1,3
1000 40 105 760 13

170M2677

6 1,3
1000 50 215 1550 14

170M2678

6 1,3
1000 63 380 2750 16

170M2679

6 1,3
1000 80 815 5900 18

170M2680

6 1,3
1000 100 1550 11500 21

170M2681

6 1,3
1000 125 3000 22000 23

170M2682

6 1,3
1000 160 6250 45000 26

170M2683

6 1,3
900 200 12000 86500 31

170M2684

6 1,3
900 225 18000 115000 33

170M2685

6 1,3


Dimensions [mm]

Table.1000 VAC 20-225 A - SIZE 00 aR breaking capacity 150kARMS



TypeSIZEINI2t przy 690 VACI2t at 690 VACPower loss
[A] [A2S] [A2s] [W]

170M3808D

1 40 40 285 4

170M3809D

50 78 550 4.5

170M3810D

63 120 850 6.5

170M3811D

80 185 1350 8.5

170M3812D

100 360 2600 10

170M3813D

125 550 3900 11

170M3814D

160 1150 8250 12

170M3815D

200 2300 16500 12.5

170M3816D

250 4350 31000 16

170M3817D

315 7300 52000 20

170M3818D

350 10000 73000 21.5

170M3819D

400 16000 115000 23

170M4863D

450 21500 155000 26.5

170M4864D

500 27000 190000 28.5

170M4865D

550 33500 240000 33

170M4866D

630 48500 345000 37.5

170M4867D

700 69500 495000 39

170M5808D

2 400 11000 79000 29

170M5809D

450 16000 115000 32

170M5810D

500 21500 155000 34

170M5811D

550 29000 215000 36

170M5812D

630 41000 295000 42

170M5813D

700 60500 430000 43

170M5814D

800 86000 610000 48

170M5820D

900 125000 895000 52

170M5816D

1000 180000 1300000 53

170M5817D

1100 245000 1750000 56

170M6808D

3 500 14000 99500 43

170M6809D

550 19500 140000 44

170M6810D

630 31000 220000 45

170M6811D

700 45000 320000 46

170M6812D

800 69500 490000 48

170M6813D

900 100000 720000 50

170M6814D

1000 140000 985000 56

170M6892D

1100 190000 1400000 57

170M8554D

1250 300000 2150000 61

170M8555D

1400 380000 2700000 70

170M8556D

1500 470000 3350000 72

170M8557D

1600 585000 4150000 74





Dimensions [mm]
SIZE
[mm]
ABDEFH
1* 69 135 64 40 40 20
2 69 150 71 5 48 26
3 68 150 88 76 60 33
