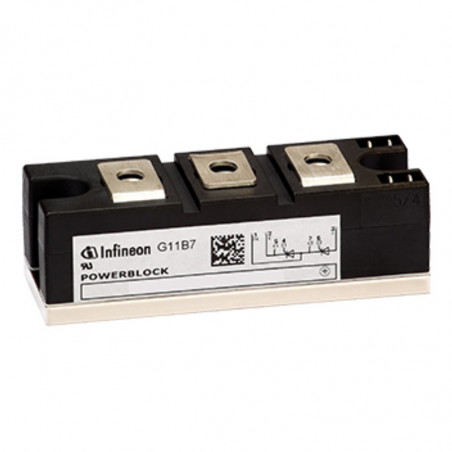

Fast thyristor modules / Thyristor-Diode and Diode-Thyristor

MODUŁY ELEKTROIZOLOWANE FIRMY EUPEC SZYBKIE MODUłY TYRYSTOROWE / TYRYS. -DIOD. I DIOD. -TYRYS.Module
type
thyristor-
thyristor		Module
type
thyristor-
diode		Module
type
diode-
thyristor		ITAVM/TC
[A/°C]		VDRM
[V]		ITSM [A]I2t
[A2 xl03]		tq
[µs]		dv/dt
[V/µs]		RthJC
[°C/W]		RthCK
[°C/W]		Casing
Base = 20 mm TT 46 F TD 46 F   45/85 800 ... 1200* 1150 6,6 F <= 25 C=500 0,52 0,16 TP20
E <= 20
Base = 25 mm TT 60 F     60/85 800 ... 1300* 1300 8,45 F <= 25 C=500 0,35 0,08 TP25
E <= 20
Base = 30 mm TT 71 F TD 71 F DT 71 F 71/85 1000 ... 1400* 2100 22 F <= 25 C=500 0,3 0,06 TP30
E <= 20
TT 81 F TD 81 F DT 81 F 81/85 400 ... 800 2200 24,2 E <= 20 C=500 0,3 0,06 TP30
D <= 15
TT 101 F TD 101 F DT 101 F 101/85 1000 ... 1400* 2400 28,8 F <= 25 C=500 0,23 0,06 TP30
E <= 20
TT 111 F TD 111 F DT 111 F 111/85 800 ... 1000 2600 33,8 E <= 20 C=500 0,23 0,06 TP30
D <= 15
Base = 50 mm TT 180 F TD 180 F DT 180 F 180/85 1000 ... 1300 6000 180 F <= 25 C=500 0,13 0,04 TP50
E <= 20
S <= 18
TT 200 F TD 200 F DT 200 F 200/85 1000 ... 1300* 6400 205 F <= 25 C=500 0,13 0,04 TP50
E <= 20
S <= 18
TZ 335 F     335/85 1000 ... 1300* 10000 500 G = 30 C=500 0,08 0,02 TP50
F = 25
E = 20

Caution:
*Highest voltage for special order
