Manufacturer: STEGO

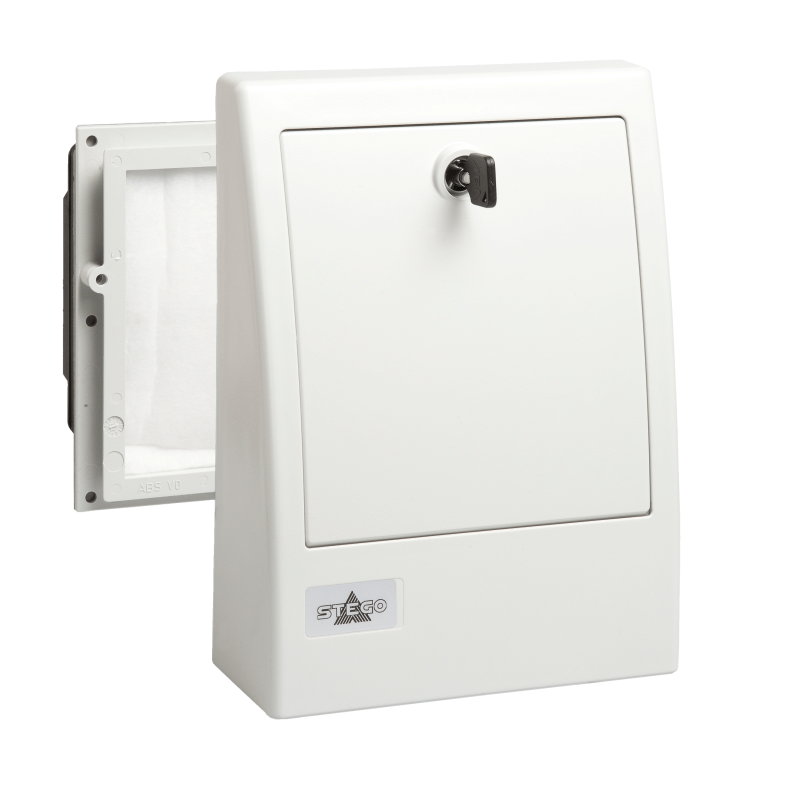

FF 018 - Fan with filter - 01821.0-00

  • 01821.0-00
  • Supply voltage 208 V - 253 V AC
  • Dimensions 170 x 157 x 127 mm
  • Housing material Tworzywo sztuczne UL94 V-0, jasnoszary
  • Protection rating IP55
  • Air flow 20 m³/h
  • Working temperature -10 ... 70 °C

The fan with an external filter is used in housings and enclosures in outdoor areas where warm air must be removed due to increased heat development (solar radiation, heat loss from the system). The housing material is highly resistant to weather conditions and UV radiation. To clean or replace the filter mat, only the lockable flap on the outer cover needs to be opened; there is no need to open the housing (safety risk).

  • Change the filter mat from the outside
  • Safe, lockable
  • Impact-resistant
  • Weather- and UV-resistant
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Supply voltage 208 V - 253 V AC
  • Dimensions 170 x 157 x 127 mm
  • Housing material Tworzywo sztuczne UL94 V-0, jasnoszary
  • Protection rating IP55
  • Air flow 20 m³/h
  • Working temperature -10 ... 70 °C

The fan with an external filter is used in housings and enclosures in outdoor areas where warm air must be removed due to increased heat development (solar radiation, heat loss from the system). The housing material is highly resistant to weather conditions and UV radiation. To clean or replace the filter mat, only the lockable flap on the outer cover needs to be opened; there is no need to open the housing (safety risk).

  • Change the filter mat from the outside
  • Safe, lockable
  • Impact-resistant
  • Weather- and UV-resistant
