Manufacturer: STEGO

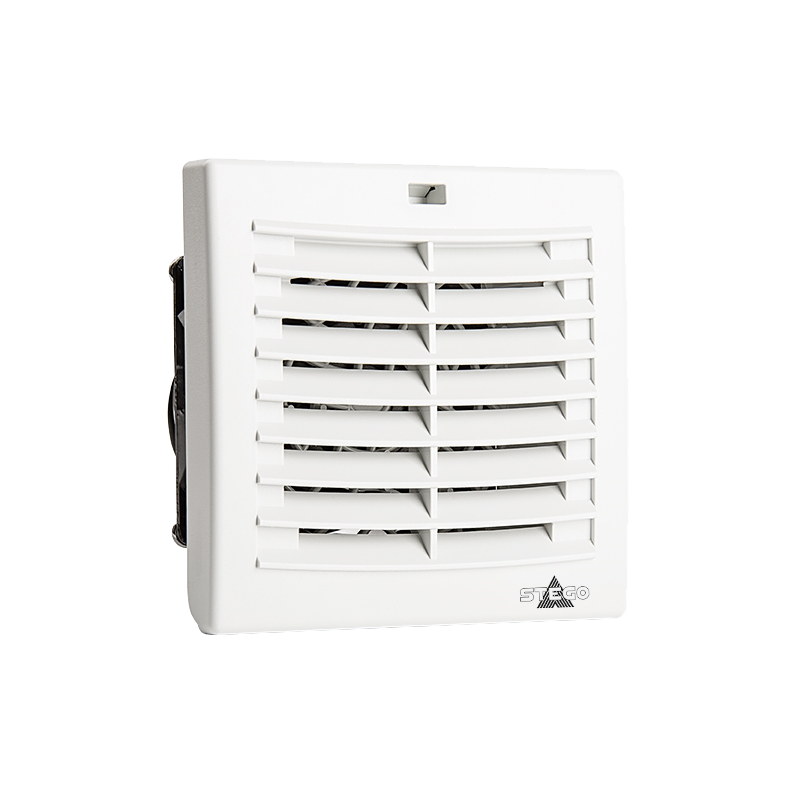

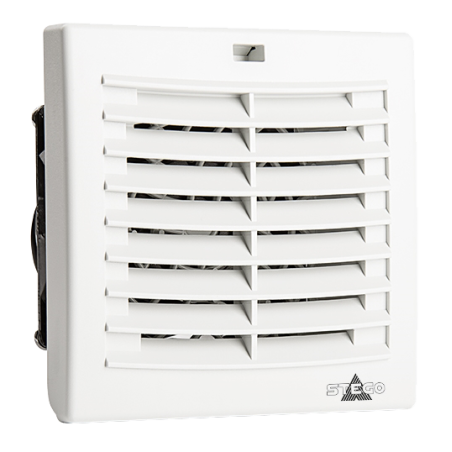

FPO 018 - Fan with filter - 01880.2-00

  • 01880.2-00
  • Supply voltage 22 V - 26 V DC
  • Dimensions 120 x 120 x 90 mm
  • Housing material Tworzywo sztuczne zgodne z UL94 V-0, jasnoszary
  • Protection rating IP54
  • Air flow 31 m³/h
  • Working temperature -20 ... 70 °C

FPO filter fan size 1 (92 x 92 mm) for air conditioning in electrical enclosures and housings. Configuration: FPO - air flow direction OUT (design: suction). The optimal filter fan for electrical enclosures: Filterfan Plus extracts heated air from the enclosure to the outside. Cooler outside air enters the enclosure through the inlet filter. This airflow protects the electrical components.

  • Filter fan with self-closing flaps for air outlet
  • Only one filter mat required (on the inlet filter)
  • Easy installation thanks to the support frame with twist locks
  • Effective air circulation
  • Accessories: splash-proof cover to increase the protection rating to IP56
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Supply voltage 22 V - 26 V DC
  • Dimensions 120 x 120 x 90 mm
  • Housing material Tworzywo sztuczne zgodne z UL94 V-0, jasnoszary
  • Protection rating IP54
  • Air flow 31 m³/h
  • Working temperature -20 ... 70 °C

FPO filter fan size 1 (92 x 92 mm) for air conditioning in electrical enclosures and housings. Configuration: FPO - air flow direction OUT (design: suction). The optimal filter fan for electrical enclosures: Filterfan Plus extracts heated air from the enclosure to the outside. Cooler outside air enters the enclosure through the inlet filter. This airflow protects the electrical components.

  • Filter fan with self-closing flaps for air outlet
  • Only one filter mat required (on the inlet filter)
  • Easy installation thanks to the support frame with twist locks
  • Effective air circulation
  • Accessories: splash-proof cover to increase the protection rating to IP56
