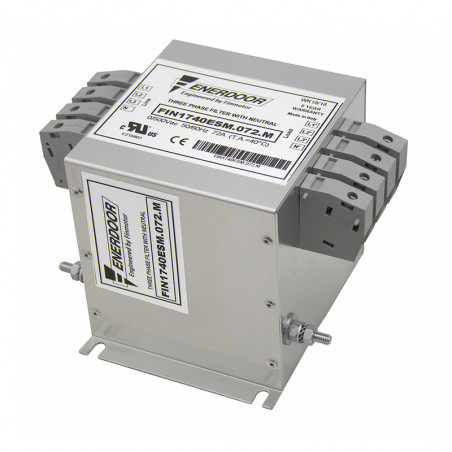

Filter phase with neutral series FIN170ESM
  • Filter phase with neutral series FIN170ESM

Photos are for informational purposes only. View product specification

Manufacturer: Enerdoor

Filter phase with neutral series FIN170ESM

Filter phase with neutral series FIN170ESM

Electric characteristics:
Nominal Voltage 0/600V AC - 50/60 Hz
Phase to phase test voltage
Phase to ground test voltage
linia - linia 2300 VDC (2s)
linia - ziemia 3100 VDC (2s)
Climatic class -40/+85oC



Technical Specifications

FIN1740ESM

IN
[A]
∑Cx [nF]
±5%
Cy1[nf]
±5%
Cy2[nF]
±5%
L1(mH)
±10%
Pow Loss
[W]

.010.M

10 (9) 9.6 100 100 1.8 5

.018.M

18 (16) 9.6 100 100 1.2 5

.036.M

36 (32) 9.6 100 100 1.1 18

.072.M

72 (64) 9.6 100 100 1 40

.100.M

100 (90) 9.6 100 100 0.7 20

.135.M

135 (120) 9.6 100 100 0.7 69

.180.M

180 (160) 9.6 100 100 0.6 89


Dimensions

FIN1740ESM

ABVV1FHILNdWeight
[Kg]
Case

.010.M

100 103 22.5 16 6.5 153 125 8.5 90 M6 1 1

.018.M

100 103 22.5 16 6.5 153 125 8.5 90 M6 1 1

.036.M

100 103 22.5 16 6.5 153 125 8.5 90 M6 1.1 1

.072.M

125 118 22.5 32.5 6.5 153 128 8.5 50 M6 1.6 2

.100.M

140 180 30 9  3 6.5 170 140 8.5 65 M10 3.4  3

.135.M

140 180 30 3  4 6.5 170 140 8.5 65 M10 4.5 3

.180.M

160 200 30 51.5 6.5 170 140 8.5 75 M10 4.8 4


Connection

Rigid Cable
[mm2]
Flexible Cable
[mm2]
Torque
[Nm]
0.2 - 10 0.2 - 6 1.2
0.2 - 10 0.2 - 6 1.2
0.2 - 10 0.2 - 6 1.2
0.5 - 16 0.5 - 10 1.8
4 - 25 6 - 35 4.5
10 - 50 10 - 50 4
35 - 95 35 - 95 20



Typical attenuation

Filtry trójfazowe z przewodem neutralnym seria FIN170ESM - charakterystyka


Electric diagram

Filtry trójfazowe z przewodem neutralnym seria FIN170ESM - schemat



Dimensions

Case 1

Filtry trójfazowe z przewodem neutralnym seria FIN170ESM obudowa

Case 2

Filtry trójfazowe z przewodem neutralnym seria FIN170ESM - obudowa 1
