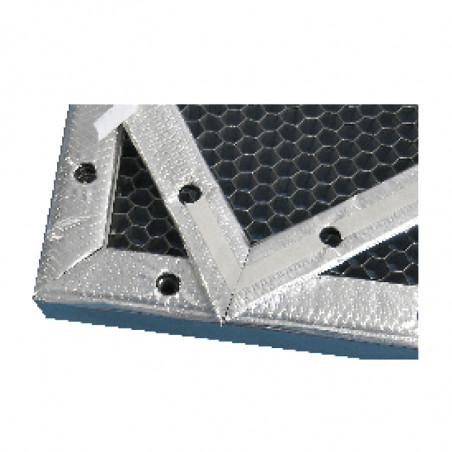

Foam gasket covered with a foil series 6800

Seal designed for connection to zinc and aluminum plates

6800 series seals are an economical solution to the HF seal, available in a wide range of sizes. This is a very effective combination for zinc plates and aluminum structures.

All seals are supplied with conductive self-adhesive tape.

The 6800 seal is made of neoprene or PVC foam covered with a reinforced alloy-based foil. This guarantees excellent shielding parameters.

For special applications, special shapes of the foam core, conductive foil, or shielding material are available.

Advantages:
- self-adhesive EMC seal
- easy installation, can be cut with scissors
- good water resistance
- seal can be cut (screw holes)
- roll lengths: 50, 100, 250, or 1000 m
- low clamping force
- deflection up to 50%

6800 series foil-covered foam seal

Uszczelka 6800

Options:
- The seal can be cut to customer requirements
- Can be combined with an environmental seal
- Can be made as a self-extinguishing UL94V-0 foam
- Can be used with an EPDM rubber core
- Can be used with a silicone sponge resistant to high temperatures up to 220°C
- Can be used with various conductive materials and foils
Foam seal covered with foil, 6800 series Foam seal covered with foil, 6800 series
Chart

Foam seal covered with foil, 6800 series, chart

Dimensions

Foam seal covered with foil, 6800 series, dimensions

68184 68185
Width X
[mm]
Height Y
[mm]		 2 3 4 5 6 7 8 10 12 15 18 20 25 32 50
1 6821 6831 6841 6851 6861 6871 6881 68101 68121 68151 68181 68201 68251 68321 68501
2 6822 6832 6842 6852 6862 6872 6882 68102 68122 68152 68182 68202 68252 68322 68502
3 6833 6843 6853 6863 6873 6883 68103 68123 68153 68183 68203 68253 68323 68503
4 6844 6854 6864 6874 6884 68104 68124 68154 68204 68254 68324 68504
5 6855 6865 6875 6885 68105 68125 68155 68205 68255 68325 68505
6 6866 6876 6886 68106 68126 68156 68186 68206 68256 68326 68506
8 6878 6888 68108 68128 68158 68188 68208 68258 68328 68508
10 681010 681210 681510 681810 682010 682510 683210 685010
12 681212 681512 681812 682012 682512 683212 685012

Shielding Parameters:
Frequency
[Hz]		 Field Shielding
[dB]
1M E 121
10M E 110
100M E 103
400M E 98
1G P 92
10G P 89
Order example
6882 - 01 - N
01: with adhesive layer in the center
02: without adhesive layer
03: with conductive adhesive layer (dedicated to small sizes)
06: with adhesive layer, asymmetrical
07: with adhesive layer on the side		 N: Standard neoprene foam
E: EPDM rubber core
P: PVC foam
F: Self-extinguishing UL94V-0 foam
Less
