Manufacturer: FLEXICON

Peszel FPAS - flexible flexible pezel with standard nylon thickness (PA6)

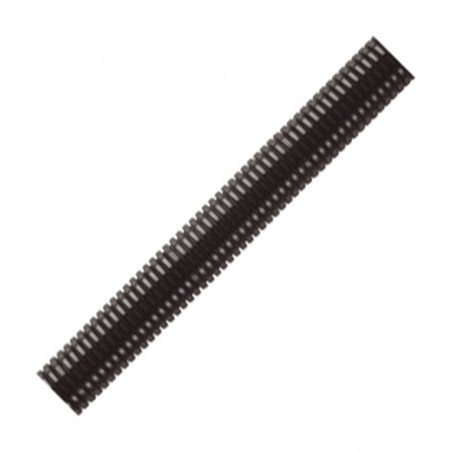

FPAS- Non-Metallic Conduits – Standard weight nylon (flame retar-dant PA6) corrugated flexible conduit

Peszel FPAS – elastyczny karbowany peszel o standardowej grubości nylonu (PA6)

Properties:
Material Nylon PA6 (flame re-tardant)
Colour: Black or Grey (RAL 7031)
Fire Performance: Highly flame retardant, halogen, sulphur and phosphorous free
Temperature Performance:
• Static -40OC +120OC
• Dynamic -20OC +100OC
IP Rating::
• IP66 with FPA fittings
• IP66+67+68+69K with FPAX fittings
Compression Strength: 75kg/100mm
Pull-off (Tensile) strength : 40kg FPA [&] FPAX fittings
25kg FLK fittings
UV resistant (UL Nr E246572)

Typical Applications;

Peszel FPAS – elastyczny karbowany peszel o standardowej grubości nylonu (PA6) zastosowanie - maszyny Machinery and OEM’s Peszel FPAS – elastyczny karbowany peszel o standardowej grubości nylonu (PA6) zastosowanie konstrukcje Construction

Compliance, Approvals [&] Accreditation;
Peszel FPAS – elastyczny karbowany peszel o standardowej grubości nylonu (PA6) certyfikaty
EN 61386 Classification Available on request
Vibration and Shock resistant to EN 61373 Cat 2
File No. E246572
File No. E229161


Nominal Size Pitch
F= fine
C= coarse		 Part No Reel Length
[m]		 OD
[mm]		 Min ID
[mm]		 Min inside Bend
radius R
[mm]		 Compression
Strength
kg/100mm		 Weight
[g/m]
10 F

FPAS10#

 50 10.0 6.3 15 100 19
11 F

FPAS11#

 50 11.5 8.2 20 60 22
13 F

FPAS13#

 50 13.0 9.8 25 75 28
16 F

FPAS16#

 50 15.8 11.8 35 60 38
18 F

FPAS18#

 50 18.5 14.2 40 80 49
20 C

FPAS20#

 50 20.0 14.8 45 80 56
21 F

FPAS21#

 50 21.2 16.7 45 75 60
25 C

FPAS25#

 50 25.0 19.1 50 80 80
28 F

FPAS28#

 50 28.5 22.8 50 70 100
28 C

FPAS28C#

 50 28.5 21.7 50 90 100
34 F

FPAS34F#

 50 34.5 28.8 60 70 135
34 C

FPAS34#

 50 34.5 28.1 60 90 135
42 C

FPAS42#

 25 42.5 35.5 70 100 165
54 C

FPAS54#

 25 54.5 47.2 80 100 235
67 C

FPAS67#

 10 67.2 56.3 130 75 365

NB: # add B for Black or G for Grey
