Manufacturer: STEGO

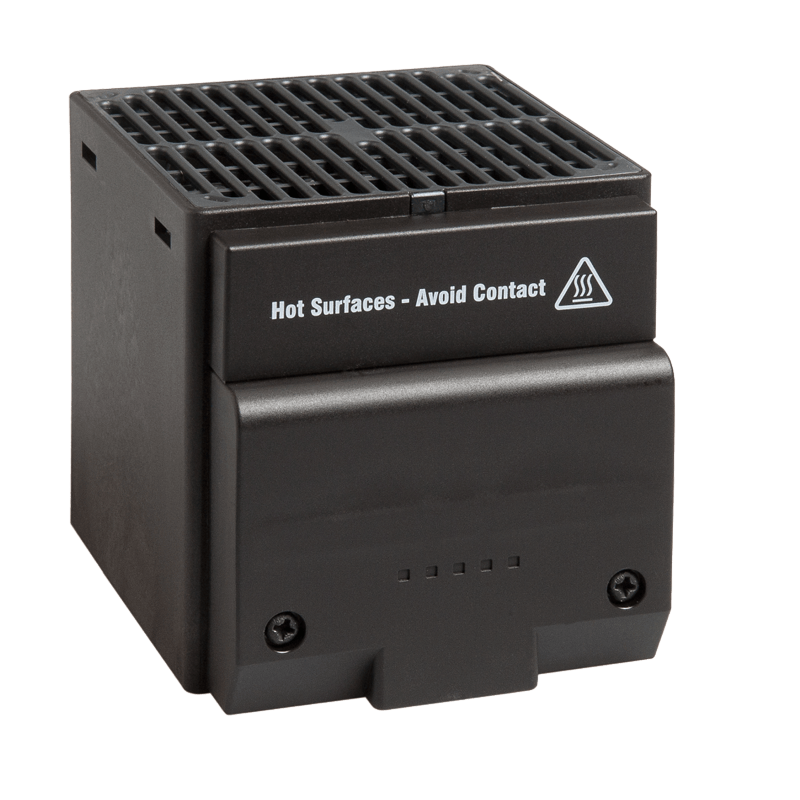

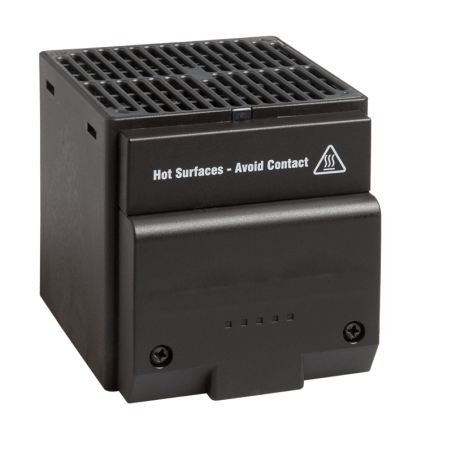

CSL 028 - Heater with fan for control cabinet - 02811.9-00

  • 02811.9-00
  • Product Type Grzałka
  • Supply voltage 120 V - 240 V AC
  • Dimensions 184 x 57 x 140 mm
  • Housing material Tworzywo sztuczne zgodne z UL94 V-0, czarno-białe
  • Protection rating IP20
  • Heating power 150 W
  • Electrical hookup 2 x złącza sprężynowe-naciskowe dla przewodów wielodrutowych 0,5 - 1,5 mm² (z izolowaną końcówką) i przewodów drutowych 0,5 - 2,5 mm²
  • Weight 750 g

This compact electrical enclosure heater with a fan and PTC heating element prevents condensation in densely packed control cabinets. The safe-to-touch plastic housing ensures user safety through the contactor.

  • PTC heating element: temperature-limiting, direct response
  • Overheating protection
  • Rail or screw mounting, as well as clip mounting to a 35 mm DIN rail, are possible.
  • Electrical connection via spring-loaded pressure connectors.
  • Temperature protection against overheating.
