Manufacturer: STEGO

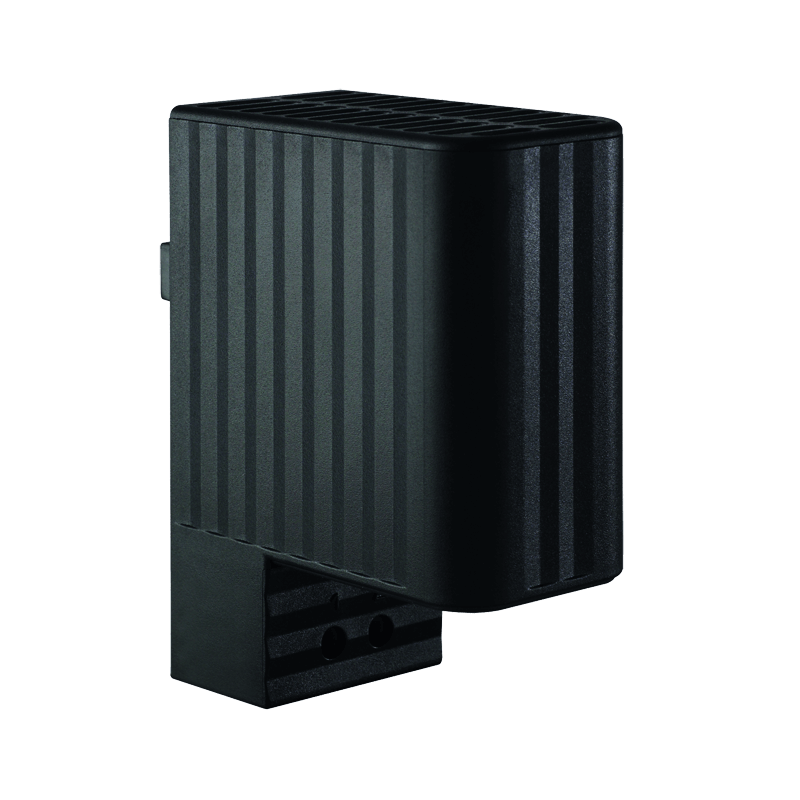

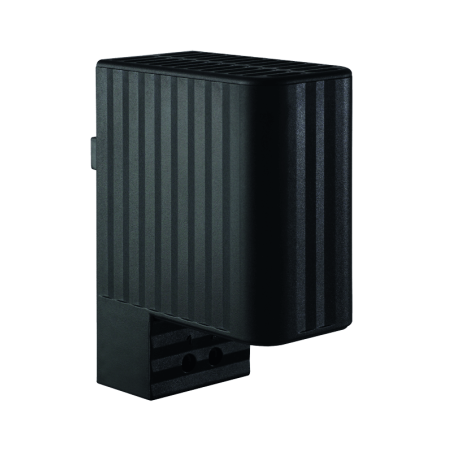

CSK 060 - Heater for electrical enclosures - 06030.0-00

  • 06030.0-00
  • Product Type Grzałka
  • Supply voltage 120 V - 240 V AC DC
  • Dimensions 265 x 70 x 60 mm
  • Protection rating IP20
  • Heating power 150 W
  • Electrical hookup 3 x złącza sprężynowe-naciskowe dla przewodów wielodrutowych 0,5 - 1,5 mm² (z izolowaną końcówką) i przewodów drutowych 0,5 - 2,5 mm²
  • Weight 700 g

This compact PTC electrical enclosure heater is designed to protect against condensation in control cabinets and installation spaces. Safety: The plastic-coated heating body reaches a maximum surface temperature of +85°C and safely protects users from high temperatures.

  • Wide voltage range for electrical connection
  • PTC heating element with dynamic response
  • Energy-saving, temperature-limiting, touch-sensitive
  • Designed for continuous operation
  • Quick installation with clip-on mounting to a 35 mm DIN rail
