3684166 Heipac Vario EMC 9U, 84 HP, 585 mm
  • 3684166 Heipac Vario EMC 9U, 84 HP, 585 mm

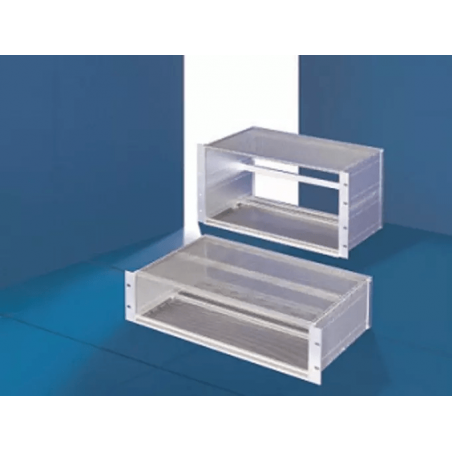

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3684166 Heipac Vario EMC 9U, 84 HP, 585 mm

  • 3684166
  • Series Heipac Vario EMC
  • Version Szyna pozioma z przodu (V1)
  • Height (mm) 261,7 mm
  • Width (mm) 181,5 mm
  • Number of slots 9 Slot
  • Packed after 1 część
  • EMC tak
For standard applications/EMC applications or complex installations
  • Wide range of standard sizes
  • For installation of backplanes or connectors
  • 10 mm pitch pattern of holes allows many varieties
  • Contact springs made of stainless steel provide high EMC protection
  • Components made of solid aluminium alloy
  • Effective heat dissipation due to open design
Material/surface finish:
  • Side panels: 2.5 mm aluminum, clear-chromated
  • Flanges and horizontal rails: Extruded aluminum section, clear-chromated
  • Covers: Aluminum, unplated
Supply includes:
  • Flanges
  • rear trim
  • side panels
  • EMC gaskets
  • covers
  • mounting blocks
  • horizontal rails
  • insulating strips.
Tests:
Shock and vibration tested to:
  • IEC 600-68-2-6 test Fc
  • IEC 600-68-2-27 test Ea
Standards:
HeiPac subracks are based on the system dimensions of IEC 60 297-3.
