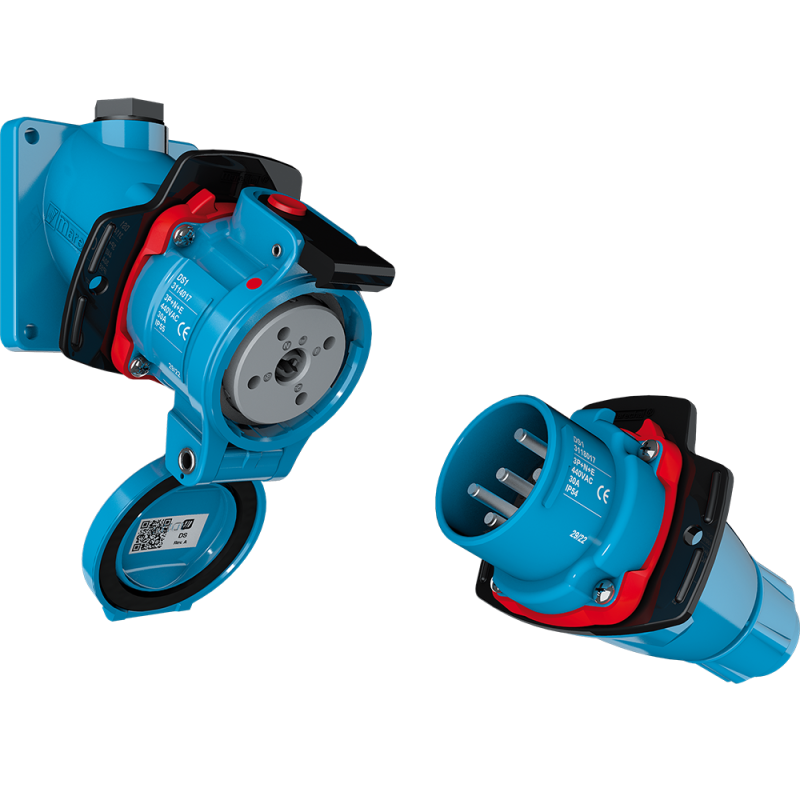

DECONTACTOR Socket and Plug (30 A, 690 V) – A Compact Industrial Solution

Compact, durable, and sealed, this industrial socket and plug with integrated connector allows for a wide range of mounting options and methods. DECONTACTOR plugs and sockets meet all industrial electrical connection requirements, offering a rated current of 30 A and voltages up to 690 V.

Key Features of the DECONTACTOR Connector

The DECONTACTOR series is the perfect combination of safety and functionality. The connectors are designed to operate reliably in harsh industrial environments, while also offering a built-in disconnect function.

• Built-in breaking capacity AC-22 and AC-23.
• Up to 2 auxiliary units can be installed.
• Automatic IP54/IP55 protection class.
• Polycarbonate housing (polycarbonate), mechanical resistance IK09.
• Electrical parameters: 30 A, 690 V.

Safety standards and certifications

DECONTACTOR sockets and plugs guarantee global compliance with the strictest safety standards and technical regulations.

• Compliance with European Low Voltage Directives (LVD) and RoHS (CE marking) and the European REACH Regulation.
• Compliance with standards IEC/EN 60309-1, IEC/EN 60309-4, IEC/EN 60947-3 (defining the breaking capacity for utilization categories AC-22 and AC-23).
• Compliance with standards UL 1682, UL 2682 (USA), CSA C22.2 N 182.1-07 (Canada), GB/T 11918.1 (China).
• Certification by leading organizations: LCIE (France), UL (USA), VDE (Germany), TR CU (Russia), CSA (Canada), CQC (China).
• Ensures compliance of electrical machines with the European Machinery Directive regarding disconnectors and with the standard EN 60204-1: Safety of machinery - Electrical equipment of machines.
• Ensures compliance of electrical installations with national regulations for worker protection in Belgium, Spain, and Italy.
• Ensures compliance of electrical installations with the standards IEC/HD 60364 and NF C 15-100.
