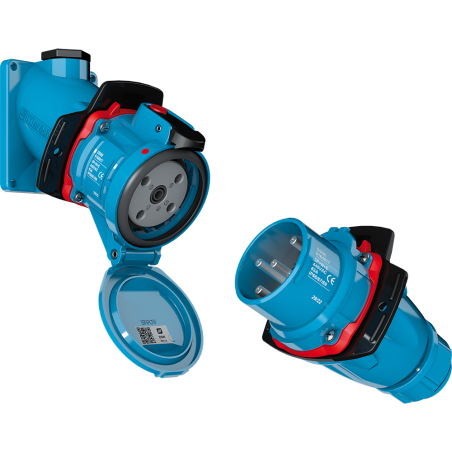

DSN6 DECONTACTOR Socket and Plug (63 A, 1000 V) – Superior Sealing and Safety

Compact, durable, and hermetically sealed, this industrial socket and plug with a built-in disconnect switch offer a wide range of mounting options. DSN6 DECONTACTOR plugs and sockets meet all industrial electrical connection requirements, offering a rated current of 63 A and voltages up to 1000 V, making them the ideal choice for high-current and high-voltage installations.

Key Features and Durability of the DSN6 Series

The DSN6 Series combines compact design with extreme durability, ensuring reliability in the harshest environments, such as dusty, humid, or flood-prone areas.

• Built-in breaking capacity AC-22 and AC-23.
• Extremely high automatic protection class: IP66/IP67/IP69 (protection against powerful water jets, immersion, and steam cleaning).
• Up to 4 auxiliary units can be installed.
• Polymer housing (Poly casing), mechanical resistance IK09.
• Electrical parameters: 63 A, 1000 V (data from the product specifications).

Global compliance and certifications

DSN6 connectors guarantee compliance with key regulations worldwide, ensuring safe and legal operation in various countries and industries.

• Compliance with the European Low Voltage Directive (LVD) and RoHS (CE marking) and the European REACH regulation.
• Compliance with the standards IEC/EN 60309-1, IEC/EN 60309-4, IEC/EN 60947-3 (defining the breaking capacity for the AC-22 and AC-23 usage categories).
• Compliance with the following standards: UL 1682, UL 2682 (USA), CSA C22.2 N 182.1-07 (Canada), MIL-S-901D (military marine specifications), GB/T 11918.1 (China).
• Certification by leading organizations: LCIE (France), UL (USA), VDE (Germany), SAA (Australia), TR CU (Russia), CSA (Canada), Bureau Veritas Marine, MIL-S-901D (Military), CQC (China), SGBP (Singapore).
• Ensures compliance of electrical machines with the European Machinery Directive regarding disconnectors and with the EN 60204-1 standard: Machinery Safety - Electrical Equipment of Machines.
• Ensures compliance of electrical installations with the decrees of August 30, 2010, September 22, 2010, and the implementing decrees of the French Labor Code regarding occupational health and safety when using electrical installations.
• Ensures compliance of electrical installations with national regulations for worker protection in Belgium, Spain, and Italy.
• Ensures compliance of electrical installations with standards IEC/HD 60364 and NF C 15-100.
