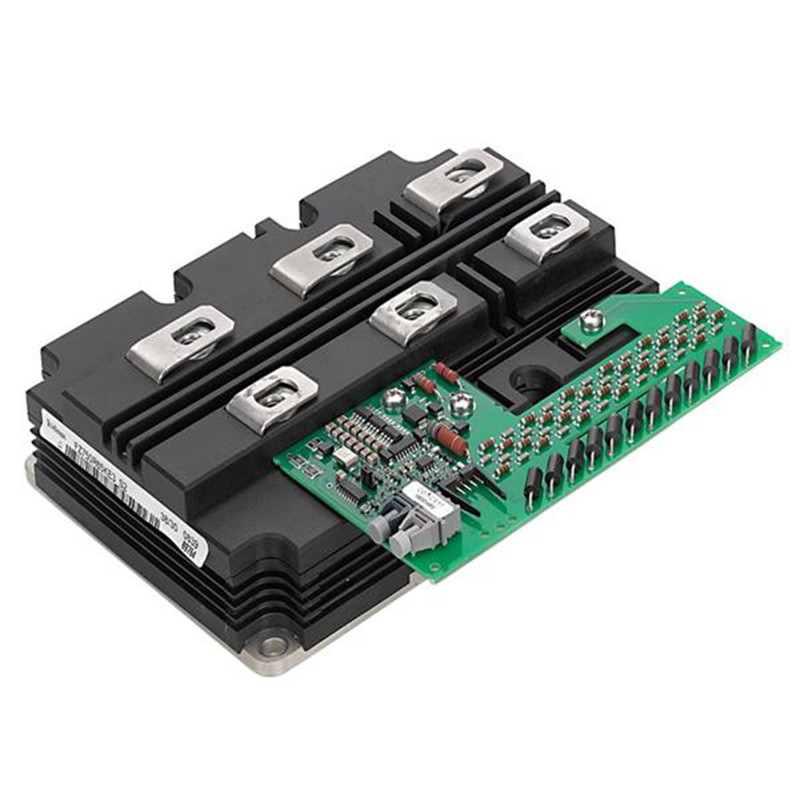

High voltage IGBT modules
High voltage IGBT modules

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Mitsubishi

Wysokonapięciowe moduły IGBT

VCES
[V]		Generation and base materialConfigurationIC[A]
200400600750
1700Gl(Cu)single
half-bridge  CM600DY-34H
chopper  CM600E2Y-34H
G3(AISiC)single
half-bridge
G4(Cu)half-bridge
Gf(AISiC)single
half-bridge
single
2500Gl(Cu)single
half-bridge CM400DY-50H
G2(Cu)single
G3(AISiC)single
3300G2(Cu)single
half-bridge CM400DY-66H
single
G3(AISiC)single CM400HG-66H
single
4500G2(Cu)single CM400HB-90HCM600HB-90H
G3(AISiC)single CM600HG-90H-
6500G3(AISiC)singleCM200HG-130H3)CM400HG-130H1),3)CM600HG-130H3)CM750HG-130R1),2),3)
single CM400E4G-130H3)

1) 1 In progress
2) CSTBT Technology
3) Case insulation (10,2kVrms)
4) Case 190 x 140
5) New R series



VCES
[V]		Generation and base materialConfigurationIC[A]
80090010001200
1700Gl(Cu)singleCM800HA-34H CM1200HA-34H
half-bridge
chopper
G3(AISiC)single CM1200HC-34H
half-bridgeCM800DZ-34H
CM800DZB-34W
G4(Cu)half-bridge CM1200DB-34N!
Gf(AISiC)single
half-bridge CM1200DC-34N!
single
2500Gl(Cu)singleCM800HA-50H CM1200HA-50H
half-bridge
G2(Cu)singleCM800HB-50H  CM1200HB-50H
G3(AISiC)single
3300G2(Cu)singleCM800HA-66H  CM1200HA-66H
half-bridge
singleCM800HB-66H  CM1200HB-66H
G3(AISiC)singleCM800HC-66H CM1000HC-66R1,5)CM1200HC-66H
CM1200HG-66H3
singleCM800E2C-66H
CM800E4C-66H
CM800E6C-66H		 CM1000E4C-66R11,5)
4500G2(Cu)single CM900HB-90H
G3(AISiC)singleCM800HG-90R1),2),3)CM900HC-90H
CM900HG-90H3		 CM1200HC-90R15
CM1200HG-90R135
6500G3(AISiC)single
single

1) 1 In development
2) CSTBT technology
3) Case insulation(10,2kVrms)
4) Case 190 x 140
5) New R series



VCES
[V]		Generation and basic materialConfigurationIC[A]
1500160018002400
1700Gl(Cu)single
half-bridge
chopper CM1600HC-34HCM1800HC-34HCM2400HC-34H
G3(AISiC)single
half-bridge
G4(Cu)half-bridge  CM1800HC-34N2)
CM1800HCB-34N2), 3)		CM2400HC-34N2
CM2400HCB-34N2),4)
Gf(AISiC)single
half-bridge
single
2500Gl(Cu)single
half-bridge
G2(Cu)single
G3(AISiC)single
3300G2(Cu)single
half-bridge
singleCM1500HC-66R
CM1500HG-66R1),3),5)
G3(AISiC)single
single
4500G2(Cu)single
G3(AISiC)single
6500G3(AISiC)single
single

1) 1 In development
2) CSTBT Technology
3) Case insulation (10,2kVrms)
4) Case 190 x 140
5) New R series



Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

TypeMaximum parametersV ce(sat) Tj =25°C
[V]		IGBT
Rth(j-c)
[°C/W]		Diode Rth(j-c)
[°C/W]		Rth(j-c) (°C/W)Case
Vces
[V]		Ic |
[A]		Viso
[V]
1700V
CM600DY-34H170060040002.750.01800.0560.016HV2
CM600E2Y-34H170060040002.750.01800.0560.016HV4
CM800HA-34H170080040002.750.01350.0420.012HV1
CM800DZ-34H170080040002.600.02000.0340.016HV2
CM800DZB-34N170080040002.100.02400.0340.016HV2
CM1200HA-34H1700120040002.750.00900.0280.008HV1
CM1200HC-34H1700120040002.500.01200.0210.008HV1
CM1200DB-34N1700120040002.150.01800.040.016HV10
CM1200DC-34N1700120040002.150.01900.0420.016HV10
CM1200E4C-34N1700120040002.150.01900.0420.016HV5
CM1200HCB-34N1700120040002.050.01450.02050.011HV5
CM1600HC-34H1700160040002.600.01000.0170.008HV1
CM1800HC-34H1700180040002.400.00800.0130.006HV6
CM1800HC-34N1700180040002.150.01300.0280.011HV5
CM1800HCB-34N1700180040002.000.00900.0130.007HV6
CM2400HC-34H1700240040002.600.00700.0120.006HV6
CM2400HC-34N1700240040002.150.00980.0210.008HV5
CM2400HCB-34N1700240040002.100.00800.0120.006HV6
2500V
CM400DY-50H250040060003.20.0360.0720.016HV3
CM800HA-50H250080060003.20.0180.0360.008HV5
CM800HB-50H250080060002.80.0120.0240.008HV7
CM1200HA-50H2500120060003.20.0120.0240.006HV6
CM1200HB-50H2500120060002.80.0080.0160.006HV6
CM1200HC-50H2500120060002.80.00850.0170.006HV6
3300V
CM400DY-66H330040060004.40.0360.0720.016HV3
CM400HG-66H3300400102003.30.0300.0600.018HV9
CM800E2C-66H330080060003.80.0120.0240.008HV6
CM800E4C-66H3300800
