Honey slices to protect the HVACAD2012LeadFree ventilation openings

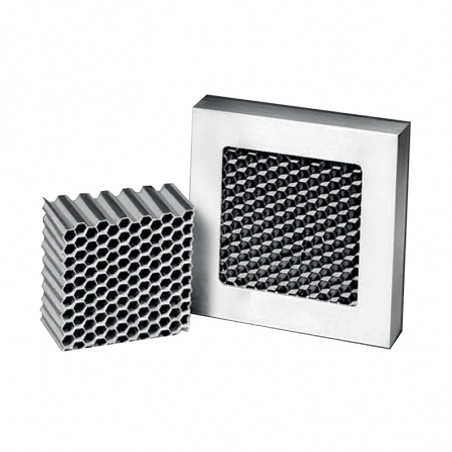

Honeycombs to protect vents HVACAD2012 LEAD FREE

SRG's unique and proprietary manufacturing process includes applying a thin coating of 95% tin to the raw base strip material.After the base strip material is formed, cut to the desired length, and assembled as a sheet, it is placed in an oven.Under a controlled set of parameters, the temperature is raised until the tin coating can flow via capillary action, a process we have called high temperature fusion bonding. After cooling, the sheet becomes a bonded or fused honeycomb matrix offering structural and RF integrity.

Standard Cell Sizes (Opening X Depth)

1/8” X 1/4” 3/16” X 1/4” 1/4” X 1/2”
1/8” X 1/2” 3/16” X 1/2” 1/4" X 3/4"
1/8” X 5/8” 3/16” X 5/8” 1/4” X 1”
1/8” X 3/4” 3/16” X 3/4”
1/8” X 1” 3/16” X 1”

Standard Sheet Sizes

24” ​​X 24” 24” X 36”
(609.6 x 609.6 mm) (609.6 x 914.4 mm)

Honeycombs to protect ventilation openings HVACAD2012LEADFREE

Honeycomb Available In The Following Material:

  • C-1010 Steel
  • 260-70/30 Brass 304 Stainless Steel
  • * Other Materials Available Upon Request

Damping characteristics:

Honeycomb panels for protecting ventilation openings HVACAD2012LEADFREE
Honeycomb panels for protecting ventilation openings HVACAD2012LEADFREE

For quotation or ordering, please specify:

  • Hole dimensions and material
  • Frame sheet dimensions
  • Frame or frameless
  • Frame pattern
