Manufacturer: STEGO

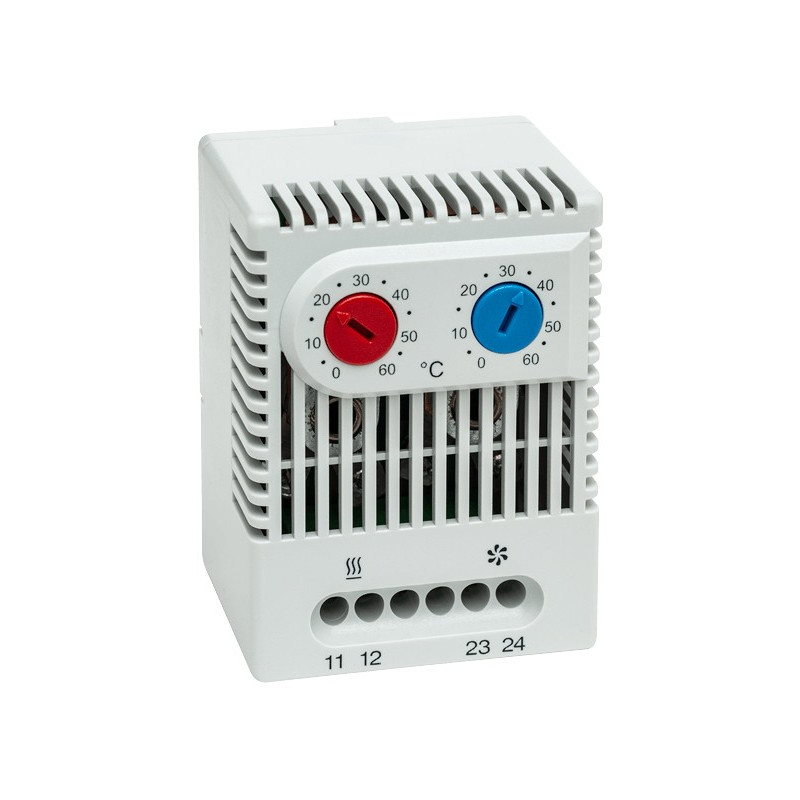

ZR 011 - Double Thermostat - 01176.0-00

  • 01176.0-00
  • Setting range 0 °C - 60 °C
  • Dimensions 67 x 50 x 46 mm
  • Protection rating IP20
  • Changeover contact Kontakt sprężynowy
  • Weight 90 g
  • Working temperature -45 °C - 80 °C

An opening contact (NC, normally closed) and a closing contact (NO, normally closed) in a single housing. Unlike thermostats with changeover contacts, a dual thermostat switches independently. This allows for switching heating and cooling devices in different temperature ranges.

  • An opening contact (NC, heating) and a closing contact (NO, cooling) in a single housing.
  • A spring contact enables independent switching.
  • Temperatures can be adjusted separately.
  • High switching capacity.
  • Secure mounting.
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Setting range 0 °C - 60 °C
  • Dimensions 67 x 50 x 46 mm
  • Protection rating IP20
  • Changeover contact Kontakt sprężynowy
  • Weight 90 g
  • Working temperature -45 °C - 80 °C

An opening contact (NC, normally closed) and a closing contact (NO, normally closed) in a single housing. Unlike thermostats with changeover contacts, a dual thermostat switches independently. This allows for switching heating and cooling devices in different temperature ranges.

  • An opening contact (NC, heating) and a closing contact (NO, cooling) in a single housing.
  • A spring contact enables independent switching.
  • Temperatures can be adjusted separately.
  • High switching capacity.
  • Secure mounting.
