3rd generation of DIP and MINI DIP IPM modules
  • 3rd generation of DIP and MINI DIP IPM modules

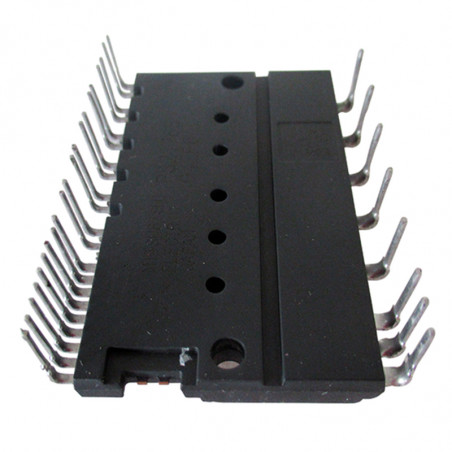

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Mitsubishi

3rd generation of DIP and MINI DIP IPM modules

TypeV CES
[V]
Motor power
kW
Ic
[A]
fc
[kHz]
Insulation voltage
[V]
trr
Tj = 25°C
[V]
Casing
PS21562 600 0,2 5 20 2500 1,6 D4
PS21563 600 0,4 10 20 2500 1,6 D4
PS21564 600 0,75 15 20 2500 1,45 D4
PS21865 600 1,5 20 20 2500 1,6 D3
PS21867 600 2,2 30 20 2500 1,6 D3
PS21869 600 3,7 50 20 2500 1,5 D3
PS21562-S 600 0,2 5 20 2500 1,6 D5
PS21563-S 600 0,4 10 20 2500 1,6 D5
PS21564-S 600 0,75 15 20 2500 1,45 D5
PS21661-RZ/-FR 600 0,1 3 15 2500 1,6 SIP1

3 GENERACJA MODUŁÓW DIP I MINI DIP IPM 3 GENERACJA MODUŁÓW DIP I MINI DIP IPM
3 GENERACJA MODUŁÓW DIP I MINI DIP IPM
3 GENERACJA MODUŁÓW DIP I MINI DIP IPM
