IGBT modules - NFM series
  • IGBT modules - NFM series

Photos are for informational purposes only. View product specification

Manufacturer: Mitsubishi

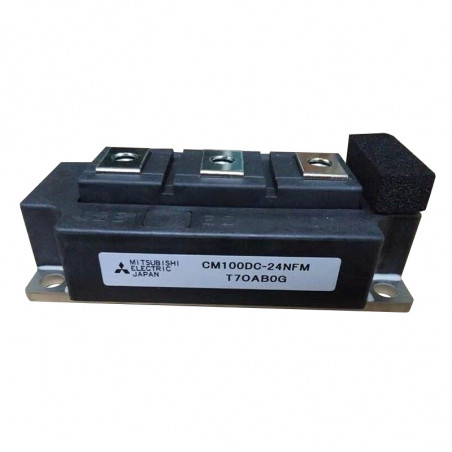

IGBT modules - NFM series

IGBT MODULES -  NFM SERIES

MODUŁY IGBT - SERIA NFM - CM100DC-24NFM, CM150DC-24NFM, CM200DC-24NFM
CM300DC-24NFM, CM400HC-24NFM, CM600HC-24NFM - MODUŁY IGBT - SERIA NFM

New „NFM” modules are destined to operate in inverters with soft keying - resonant circuits.

Table Electrical data

TypeMaximum valueCasing
Vces
[V]
Ic
[A]
Pt
[W]

CM100DC-24NFM **

1200 100 960 *

CM150DC-24NFM **

1200 150 1340 *

CM200DC-24NFM **

1200 200 1890 *

CM300DC-24NFM **

1200 300 2710 *

CM400HC-24NFM **

1200 400 3670 *

CM600HC-24NFM **

1200 600 2350 *
Caution:
* - available for special order
** - during work out
