Inductive sensors TID, DC, 3 wires

Output cable length - 2m (other length for request)
Technical data:
• Supply voltage 10...30V DC (10...60V DC)**
• Supply voltage ripple ≤ 3,5V
• Load current    200mA (400mA)**
• Power consumption without control 12mA
• Residual voltage 0,8...1,8V DC
• Residual current 10μA
• Output resistance 6,8kW
• Switching hysteresis ≤ 15%
• Repeatability ≤ 10% Sn
• Temperature coefficient ≤ 10%
• Operation temperature -25°C ... 70°C
• Protection degree IP 67
• Casing nickled brass
• Protection current and overvoltage outputs
• Signalisation LED



Metal casingM8x1M12x1M12x1M18x1M18x1M30x1,5M30x1,5
Assembly method Build in Build in Not build in Build in Not build in Build in Not build in
Normal operation distance 1,5mm 2mm 4mm 5mm 8mm 10mm 15mm
Operation distance 0 ... 1,2mm 0 ... 1,6mm 0 ... 3,2mm 0 ... 4mm 0 ... 6,4mm 0 ... 8mm 0 ... 12mm
Supply voltage 10 ... 30 V DC 10 ... 30 V DC* 10 ... 30 V DC 10 ... 30 V DC* 10 ... 30 V DC* 10 ... 30 V DC* 10 ... 30 V DC*
Load current 200mA 200mA* 200mA* 200mA* 200mA* 200mA* 200mA*
Switching frequency 2000Hz 1000Hz 500Hz 500Hz 300Hz 300Hz 200Hz
Weight 0.03kg 0,05kg 0,05kg 0,08kg 0,08kg 0,12kg 0,12kg
Connection PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2

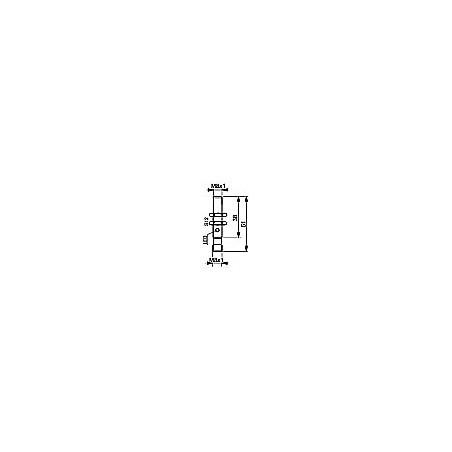

Dimensions[mm]
Sensor marking PNP _/_NO TID0801ZP TID1202ZP TID1204ZP TID1805ZP TID1808ZP TID3010ZP TID3015ZP
Sensor marking PNP_/|_NC TID0801RP TID1202RP TID1204RP TID1805RP TID1808RP TID3010RP TID3015RP
Sensor marking NPN _/_NO TID0801ZN TID1202ZN TID1204ZN TID1805ZN TID1808ZN TID3010ZN TID3015ZN
Sensor marking NPN_/|_NC TID0801RN TID1202RN TID1204RN TID1805RN TID1808RN TID3010RN TID3015RN
Connection connector M8 connector M12 connector M12 connector M12 connector M12 connector M12 connector M12
Dimensions [mm]
Sensor marking PNP _/_NO TID0801ZPK TID1202ZPK TID1204ZPK TID1805ZPK TID1808ZPK TID3010ZPK TID3015ZP
Sensor marking PNP_/|_NC TID0801RPK TID1202RPK TID1204RPK TID1805RPK TID1808RPK TID3010RPK TID3015RP
Sensor marking NPN_/_ NO TID0801ZNK TID1202ZNK TID1204ZNK TID1805ZNK TID1808ZNK TID3010ZNK TID3015ZN
Sensor marking NPN_/|_NC TID0801RNK TID1202RNK TID1204RNK TID1805RNK TID1808RNK TID3010RNK TID3015RN

connector
Net price in

Supply voltage [1]

Connection [2]

Diameter [4]

Type [5]

Operating range [7]

Manufacturer [1]

Photo Manufacturer No.
Manufacturer
Catalog No.
Product type Diameter Operating range Supply voltage Type Connection Check stock aviability Quantity [pcs.] Net price $ [USD] / pcs. Order
Check
0
from 1 90.00
Check
0
from 1 96.00
Check
0
from 1 90.00
Check
0
from 1 96.00
Check
0
from 1 90.00
Check
0
from 1 96.00
Check
0
from 1 90.00
Check
0
from 1 96.00
Check
0
from 1 75.00
Check
0
from 1 79.00
Check
0
from 1 75.00
Check
0
from 1 79.00
Check
0
from 1 75.00
Check
0
from 1 79.00
Check
0
from 1 75.00
Check
0
from 1 79.00
Check
0
from 1 75.00
Check
0
from 1 79.00
Check
0
from 1 75.00
Check
0
from 1 79.00
Check
0
from 1 75.00
Check
0
from 1 79.00
Check
0
from 1 75.00
Check
0
from 1 79.00
Check
0
from 1 79.00
Check
0
from 1 85.00
Check
0
from 1 79.00
Check
0
from 1 85.00
Check
0
from 1 79.00
Check
0
from 1 85.00
Check
0
from 1 79.00
Check
0
from 1 85.00
Check
0
from 1 79.00
Check
0
from 1 85.00
Check
0
from 1 79.00
Check
0
from 1 85.00
Check
0
from 1 79.00
Check
0
from 1 79.00
Check
0
from 1 79.00
Check
0
from 1 79.00
Check
0
from 1 93.00
Check
0
from 1 99.00
Check
0
from 1 93.00
Check
0
from 1 99.00
Check
0
from 1 93.00
Check
0
from 1 99.00
Check
0
from 1 93.00
Check
0
from 1 99.00
Check
0
from 1 93.00
Check
0
from 1 99.00

TID0801ZNK Czujnik indukcyjny | TWT

Manufacturer No.: TID0801ZNK

Catalog No.: A-X-X-014949

Manufacturer: TWT

Catalogue data

Diameter
M8
Operating range
1,5 m m
Supply voltage
10..30 VDC
Type
NPN NO
Connection
Kabel 2m - 3 przewodowy

Price $ [USD] / pcs.

Quantity [pcs.] Net price tax_class
from 1 96,00 PLN 118,08 PLN

Order

Stock aviability: Check
