Han E cartridges

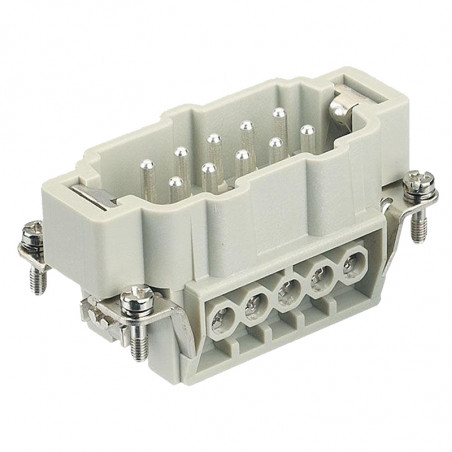

Inserts Han E®

SeriesHAN E®
Number of contacts6 + 10 + 16 + 24 +
Power supply Screw terminal Screw terminal Screw terminal Screw terminal



Electrical data acc.
to EN 61 984
UL/CSA
Wire gauge
Identification of contacts
16 A 500 V 6 kV 3
600 V
1 ... 2,5 mm2
1-6		 16 A 500 V 6 kV 3
600 V
1 ... 2,5 mm2
1-10
16 A 500 V 6 kV 3
600 V
1 ... 2,5 mm2
1-16
16 A 500 V 6 kV 3
600 V
1 ... 2,5 mm2
1-24
Male insert (M)
Female insert (F)		 09 33 006 2601
09 33 006 2701		 09 33 010 2601
09 33 010 2701		 09 33 016 2601
09 33 016 2701		 09 33 024 2601
09 33 024 2701

Number of contacts6 + 10 + 16 + 24 +
Power supply Crimp terminal Crimp terminal Crimp terminal Crimp terminal

Electrical data acc.
to EN 61 984
UL/CSA
Wire gauge
Identification of contacts
16 A 500 V 6 kV 3
600 V
0,5 ... 4 mm²
1-6
16 A 500 V 6 kV 3
600 V
0,5 ... 4 mm²
1-10
16 A 500 V 6 kV 3
600 V
0,5 ... 4 mm²
1-16
16 A 500 V 6 kV 3
600 V
0,5 ... 4 mm²
1-24
Male insert (M)
Female insert (F)		 09 33 006 2602
09 33 006 2702		 09 33 010 2602
09 33 010 2702		 09 33 016 2602
09 33 016 2702		 09 33 024 2602
09 33 024 2702

Number of contacts32 + 48 +
Power supply Screw terminal Screw terminal

Electrical data acc.
to EN 61 984
UL/CSA
Wire gauge
16 A 500 V 6 kV 3
600 V
1 ... 2,5 mm²
16 A 500 V 6 kV 3
600 V
1 ... 2,5 mm²
Identification of contacts 1-16 17-32 1-24 25-48
Male insert (M)
Female insert (F)		 09 33 016 2601
09 33 016 2701		 09 33 016 2611
09 33 016 2711		 09 33 024 2601
09 33 024 2701		 09 33 024 2611
09 33 024 2711

Number of contacts32 + 48 +
Power supply Crimp terminal Crimp terminal

Electrical data acc.
to EN 61 984
UL/CSA
Wire gauge
16 A 500 V 6 kV 3
600 V
0,5 ... 4 mm²
16 A 500 V 6 kV 3
600 V
0,5 ... 4 mm²
Identification of contacts 1-16 17-32 1-24 25-48
Male insert (M)
Female insert (F)		 09 33 016 2602
09 33 016 2702		 09 33 016 2612
09 33 016 2712		 09 33 024 2602
09 33 024 2702		 09 33 024 2612
09 33 024 2712
