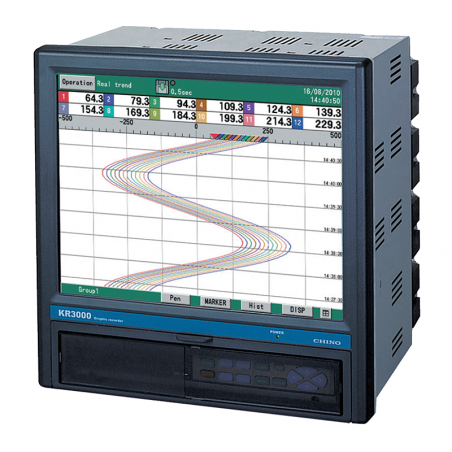

Recorder KR 3000

KR3000 Series are network-compatible paperless recorders with high performance and high operating
function employed high visibility 12.1” TFT color LCD display and touch panel operation system. High speed
of sampling rate 100ms for 48 points and high accuracy of ±0.1% were realized, and measured data
is stored into internal memory and maximum 2GB compact flash card (CF card).
As it can be monitored by a web browser display on several computers on intranet or internet, FTP transfer
of data file and E-mail notification are also available.

Technical data

Measuring points 12 points, 24 points, 36 points and 48 points
Input types: Universal
     DC voltage ±13.8mV, ±27.6mV, ±69.0mV ±200mV, ±500mV, ±2V ±5V*,
  ±10V*, ±20V*, ±50V* (*z wbudowanym dzielnikiem napięcia)
     DC current With external shunt resistor (sold separately)
     Thermocouple B, R, S, K, E, J, T, N, PtRh40-PtRh20,W-WRe26, WRe5-WRe26,
  Platinel, NiMo-Ni, CR-AuFe, U, L
     Resistance thermometer Pt100, JPt100, Pt50, Pt-Co
Sampling rate: Approximately 100ms for all points
  1s --- Approximately 300ms for all points
Memory for history: 136MB
Additional memory: CF card (Up to 2GB)
Recording cycle: 100, 200, 500ms
  1, 2, 3, 5, 10, 15, 20, 30s
  1, 2, 3, 5, 10, 15, 20, 30, 60min
Alarm Setups Up to 4 alarms can be programmed per channelł
Alarm types:: Upper limit, lower limit, differential upper limit, differential lower limit
(deadband is selectable), abnormal data
Delay function: Setup range of alarm delay --- 1 to 3600 seconds
Alarm settings: AND/OR selectable
Display 12.1” TFT color LCD
Display types:
     Measured data display(Trend screen, Data screen, Bar-graph screen)
     Historical trend display (simultaneous display with Real-time trend is available)
     Information display (alarm display, marker list, file list)
     Setting screen (alarm, computation, memory, system, maintenance, communication, etc.)
Communication type: Ethernet (10BASE-T/100BASE-TX)
FTP serwer : Data file can be read from the network computer
FTP client : Transfer a data file to a network server
SNTP client :: The time can be synchronized to the time of SNTP server
Web server Conformed to HTTP1.0 --- Display the alarm, information of maintenance
by browser software (InternetExplorer5.0 or later, NetScape6.0 or later,
Opera7 or later)
E-Mail: E-Mail notification at specified time for alarm activation
Report data at specified time is selectable from all registered data
Notification address --- Maximum 8 contacts
USB Communications USB2.0
Rated power voltage 100 to 240V AC (universal power supply) 50/60Hz
Maximum power consumption 65VA
Ambient temperature 0 do 50ºC
Ambient humidity 20 do 80%RH
Weight: 7.2kg
Mounting: Panel mounting

Connection

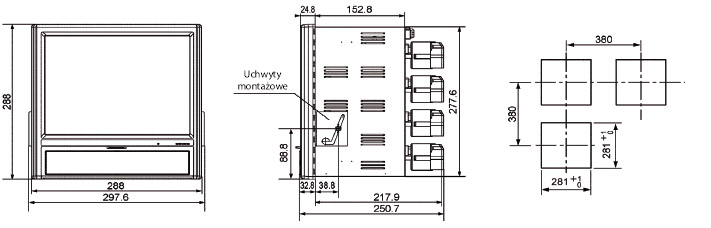

Dimensions
Catalogue number

Measuring points/sampling rate
20: 12 points/100ms
40: 24 points/100ms
60: 36 points/100ms
80: 48 points/100ms
21: 12 points/1s
41: 24 points/1s
61: 36 points/1s
81: 48 points/1s
Communications interface (option)
N: None
R: High-order (RS232C)
S: High-order (RS422A/RS485)
Digital input/alarm output (option)
0: None
1: Alarm output 12 points (a contact)
2: Alarm output 6 points (c contact)
3: Alarm output 24 points (a contact)
4: Alarm output 12 points (c contact)
5: Alarm output 12 points (a contact)
+ 6 points (c contact)
A: Digital input 8 points
B: Digital input 8 points
+ alarm output 12 points (a contact)
C: Digital input 8 points
+ alarm output 6 points (c contact)
D: Digital input 8 points
+ alarm output 24 points (a contact)
E: Digital input 8 points
+ alarm output 12 points (c contact)
F: Digital input 8 points
+ alarm output 12 points (a contact)
+ alarm output 6 points (c contact)
