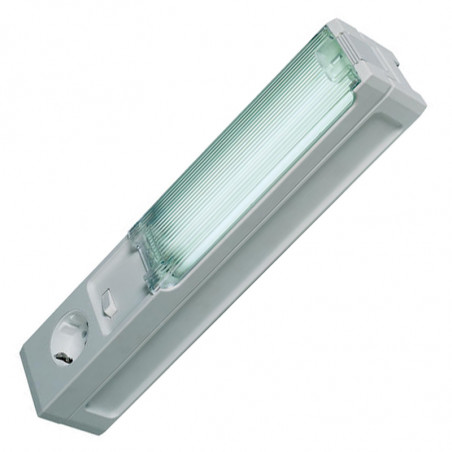

Lamp - type Compact - KL 025 series
  • Lamp - type Compact - KL 025 series

Photos are for informational purposes only. View product specification

Lamp - type Compact - KL 025 series

Easy assemble with magnet or DIN bus
Compact and energy saving lamp
Lamp with or without socket
With switch





Technical data
brightness
900 Lm
Light source type
Energy saving bulb with starter
Lifetime
5 OOOh
Switch
Bulb switch
Terminals
3 pole 2,5 mm2
Mounting
Mounted with magnet on steel sheets.
Casing
Plastic, light grey
Dimensions
355 x65 x 70 mmm
Weight
ok .1,0 kg
Assembly
Arbitrary
Operation temperature
-20 do 50°C
Equipment
Shield,art number. 09520.0-00 (see drawing.)
Catalogue number
Article numberPower supplySocketPowerCurrentProtection class
02500.0-00 AC230V, 50 Hz Germany(1) 11 W (respond to bulb 75 W) 16,0 A I (PE)
02500.0-07 AC230V, 50 Hz without socket 11 W (respond to bulb 75 W) 16,0 A II (with insulation)
02501.0-00 AC230V, 50 Hz France/Poland (2) 11 W (respond to bulb 75 W) 16,0 A I (PE)
02502.0-00 AC230V, 50 Hz Switzerland (3) 11 W (respond to bulb 75 W) 10,0 A I (PE)
02510.0-00 AC230V, 50 Hz Great Britain/Ireland (4) 11 W (respond to bulb 75 W) 13,0 A I (PE)
02512.0-00 AC230V, 50 Hz Italy(6) 11 W (respond to bulb 75 W) 16,0 A I (PE)
02505.9-00 AC 120V, 60 Hz without socket 9 W (respond to bulb 60 W) 16,0 A II (with insulation)
02505.9-01 AC 120V, 60 Hz USA/Canada (5) 9 W (respond to bulb 60 W) 15,0 A I (PE)
