In order to display message containing letters and digits alphanumeric displays are used. Multi function software allows to cooperate with most of industrial measurement and control devices and PC computers
Additional information:
Possibility to wireless or infra-red control.

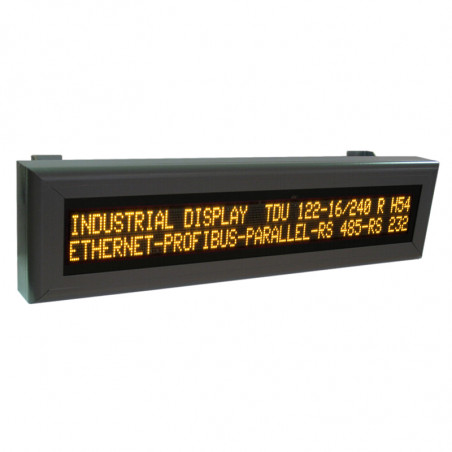

Alphanumeric programmable device with dynamic and static text display option. High quality LEDs with high contrast allow for long and reliable operation.
Devices has seal, aluminium casing, which provide protection even in hard operation conditions.
Model | DAC/TDU 76 | DAC/TDU 99 | DAC/TDU 122 | DAC/TDU 200 | DAC/TDU 240 |
Character size |
75 mm |
99 mm |
120 mm |
200 mm |
240 mm |
Rows quantity |
2 |
Read |
Single or double |
Diode colour |
red, green, red and green, amber |
Read |
30 m |
40 m |
50 m |
100 m |
120 m |
Resolution |
16 x 128 |
16 x 240 |
16 x 240 |
20 x 224 |
18 x 168 |
Raster |
4,75 mm |
6,19 mm |
7,62 mm |
10 mm |
13,33 mm |
Protection level |
IP55 |
IP54 |
IP54 |
IP54 |
IP54 |
Dimensions |
800x310x150 |
1700x320x110 |
2050x350x150 |
2400x372x86 |
2430x395x90 |
Light elements |
High brightness diodes AllnGaP, PLLC-4 smd |
Communication interface |
RS 232/RS 485, LonWorks(FTT-10A), Profibus DP, Ethernet (TCP/IP), parallel communication, PLC-BCD, others |
Operation temperature |
-30 - +40oC |
Casing |
Aluminium profile RAL 7001 |
Power supply |
230VAC with tollerance +6%,-10%, 50Hz |
