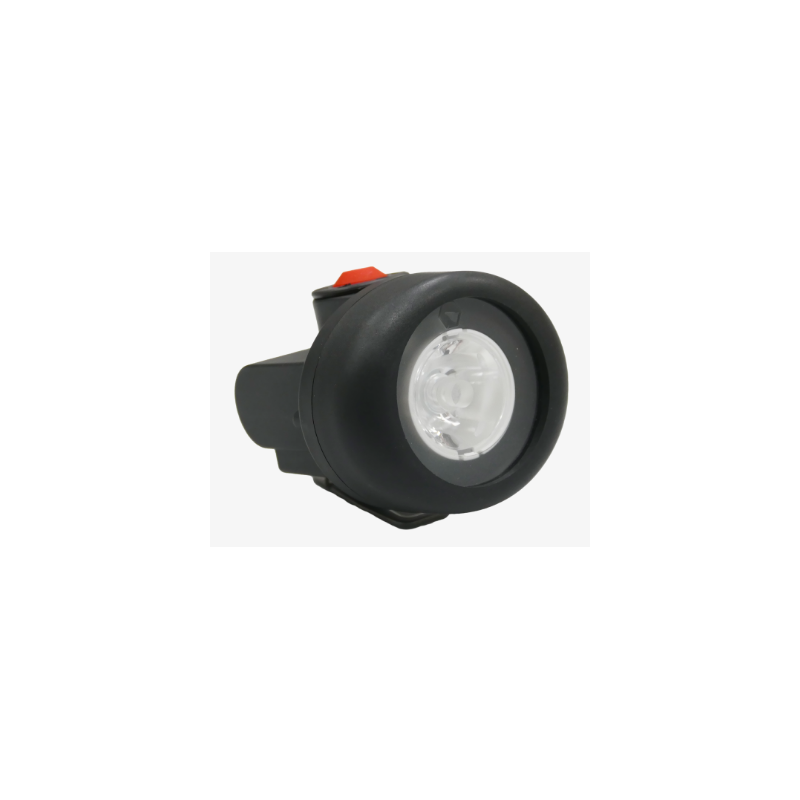

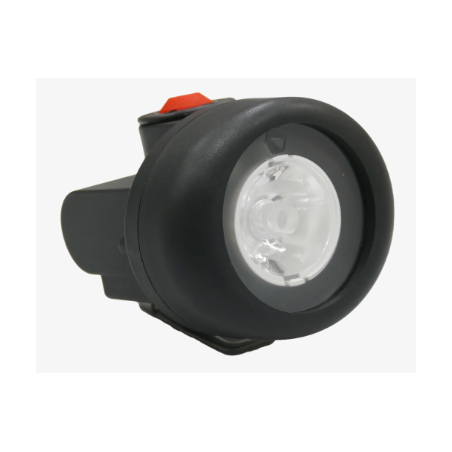

Серия MCII

Improved version of the MC lamp

The previous MC lamp has undergone a technical modernization and is now even more durable and reliable than ever before. The housing is made of high-performance polymer, and the light distribution has been further optimized thanks to the use of a new precision lens.

Furthermore, the luminaire has been tested and certified according to the latest ATEX standards, ensuring maximum safety.

Certification and markings:

• II 1 G Ex ia op is IIC T4 Ga
• I M1 Ex ia op is I + H2 Ma
• EN 60079-35-1
• -15 °C < This < +50 °C / +60 °C at T2

Technical Features:

• Precision Lens Technology
• Charging time less than 9 hours
• Li-Ion battery
• IP67 protection rating (complete dust protection, waterproof up to 1 m)
• 145 grams without clip

Durability

The addition of glass fibers in the material provides very high load resistance.

Easy to use

It couldn't be simpler. The lamp has no additional features – simple and intuitive operation!

Light Quality

The light is directed through a precision lens – the beam angle is 6°, making it ideal for mining and tunneling work!

Charge Management

After 500 charging cycles, the battery retains over 80% of its capacity, even under continuous load.

Technical Specifications:

Mode	Luminous Flux	Light Range	Lighting Time	Color Temperature	Light Modes	ATEX Zone	Temp. ATEX
POWER	230 lm	190 m	6–30 h	5000 K	power / work / emergency	1G, M1 +H2	-15 °C to +50 °C
PERFORMANCE	180 lm	14–30 h	5000 K	work /emergency	1G, M1 +H2	-15 °C to +50 °C
POWER @T2	230 lm	190 m	6–30 h	5000 K	power / work / emergency	1G, M1 +H2	-15 °C to +60 °C
PERFORMANCE @T2	180 lm	14–30 h	5000 K	work / emergency	1G, M1 +H2	-15 °C to +60 °C
