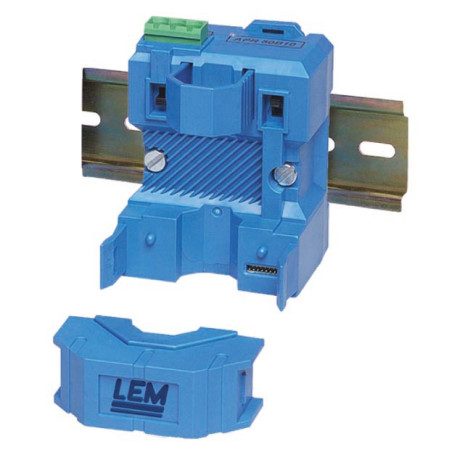

AP 400 B10 current transducer
AP 400 B10 current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

AP 400 B10 current transducer

  • AP 400 B10
  • Accuracy 1,00%
  • Rated Current [A] 200, 300, 400
  • Primary signal [AC / AC+DC / DC] AC
  • Supply voltage [V] 24V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel/DIN
  • App Automation/Renewable Energy/Drives
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -20
  • Maximum operating temperature [°C] 60
  • Frequency response (-3dB) [kHz] 2
  • Feedback loop [open / closed] // Eta technology Prime(?)

Applications:

  • Automation systems: Analog current reading for remote monitoring (e.g., engine) and software alarms.
  • Panel meters: Easy connection to energy consumption displays.

Technical specifications:

Measured quantity Current
Rated current 200, 300, 400A
Measuring range 400A
Output signal Voltage, DC RMS 0-5V / 0-10V
Signal Primary AC
Power Supply 24V DC
Accuracy 1%
Operating Temperature -20°C…60°C
Technology Current Transformer
Mounting On DIN Rail
Less
Read more
704.79 PLN
704.79 PLN Gross price / pcs.
573.00 PLN Net price / pc.
Tax included
Availability: Available quantity: 1
1 - 2 Business Days Estimated delivery / order fulfillment time. The order fulfillment time depends on the production capabilities.
