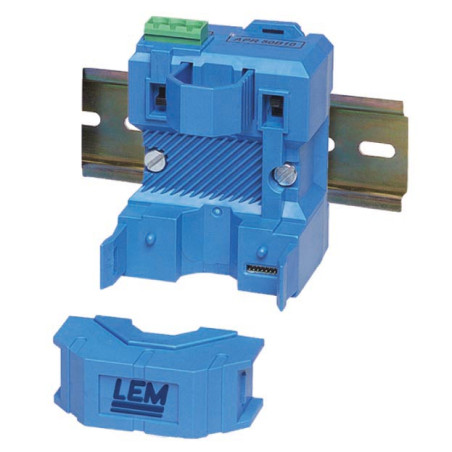

APR 50 B10 current transducer
APR 50 B10 current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

APR 50 B10 current transducer

  • APR 50 B10
  • Accuracy 1,00%
  • Rated Current [A] 10, 25, 50
  • Primary signal [AC / AC+DC / DC] AC
  • Supply voltage [V] 24V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel/DIN
  • App Automation/Drives/Power Supplies/Renewable Energy
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -20
  • Maximum operating temperature [°C] 60
  • Frequency response (-3dB) [kHz] 6
  • Feedback loop [open / closed] // Eta technology Prime(?)

Applications:

  • VFD-controlled loads: The VFD output indicates how the motor and connected load are operating.
  • SCR-controlled loads: Accurately measure firing angles or firing pulses (proportional to time) of SCRs. Current measurement provides a faster response than temperature measurement.
  • Switching power supplies and electronic ballasts: True RMS measurement is the most accurate way to measure the input power of a power supply or ballast.

Technical specifications:

Measured quantity Current
Rated current 10, 25, 50A
Measuring range 50A
Output signal Voltage, DC TRMS 0-5V / 0-10V
Signal Primary AC
Power Supply 24V DC
Accuracy 1%
Operating Temperature -20°C…60°C
Technology Prime(?)
Mounting On DIN Rail
Less
Read more
599.01 PLN
599.01 PLN Gross price / pcs.
487.00 PLN Net price / pc.
Tax included
Availability: Available quantity: 3
1 - 2 Business Days Estimated delivery / order fulfillment time. The order fulfillment time depends on the production capabilities.
