Manufacturer: LEM

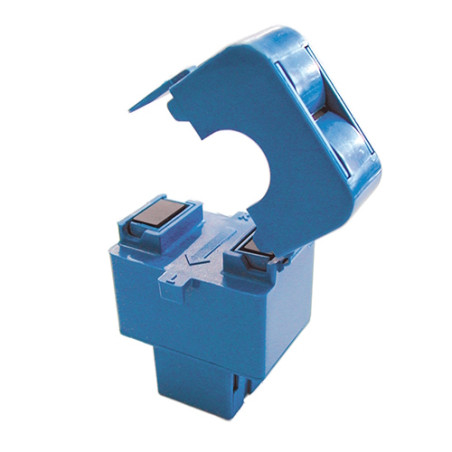

AT 10 B420L current transducer

  • AT 10 B420L
  • Accuracy 1,50%
  • Rated Current [A] 10
  • Primary signal [AC / AC+DC / DC] AC
  • Supply voltage [V] Loop powered
  • Mounting [THT / SMD / DIN / Panel / On primary rail] On the primary bus
  • App Automation/Renewable Energy/Drives
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -20
  • Maximum operating temperature [°C] 60
  • Frequency response (-3dB) [kHz] 0,06
  • Feedback loop [open / closed] // Eta technology Current transformer

Applications:

  • Automation and Monitoring
    Current measurement for process control via distributed PLC or remote control (e.g., SCADA software).
  • Safety and Condition Monitoring
    Load monitoring for protection systems and predictive maintenance (e.g., conveyors, pumps, or HVAC motors).
  • Energy Management
    Convenient connection to energy submeters.

Technical Data:

Measured quantity Current
Rated current 10A
Measuring range 10A
Output signal DC RMS current 4-20mA
Signal Primary AC
Power Supply Not Required
Accuracy 1.5%
Operating Temperature -20°C…60°C
Technology Current Transformer
Mounting On Primary Busbar
